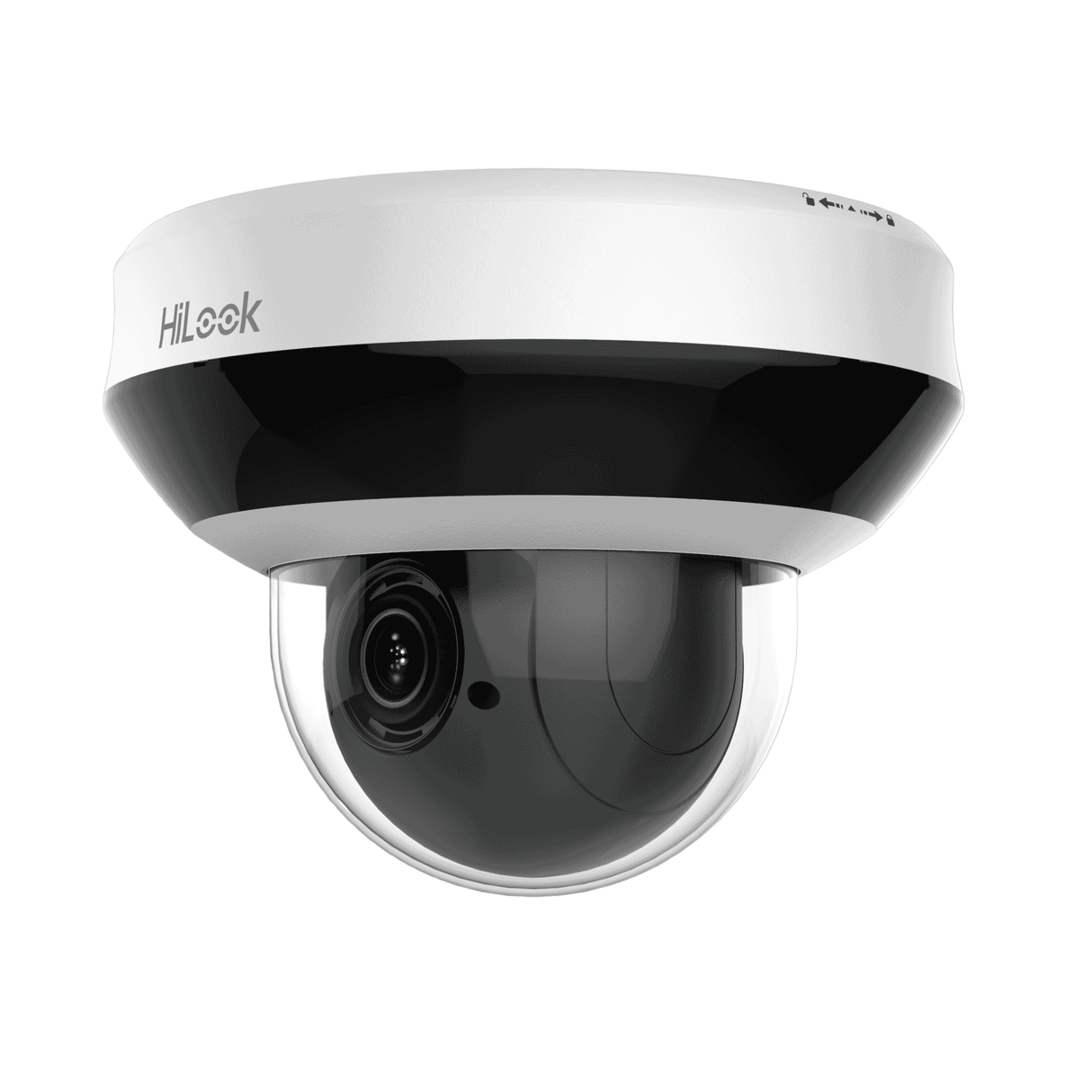

HiLook PTZ-N2404I-DE3(F) 4MP IP PTZ Dome Camera, 4× Motor Zoom

Introduction: Meet the HiLook PTZ-N2404I-DE3(F)

The HiLook PTZ-N2404I-DE3(F)is a compact 4 MP outdoor PTZ dome camera built for reliable perimeter and site surveillance. Combining a 4× motorised optical zoom, 4 MP (2560 × 1440) resolution, True WDR and DarkFighter low-light capability, the camera is designed to deliver clear daytime and nighttime images from a small, vandal-resistant housing. With PoE support, on-board microSD recording, audio I/O and broad protocol compatibility, it targets installers and site operators who need an affordable, resilient PTZ solution for small-to-medium outdoor deployments.

Key features at a glance

• Resolution:4 MP (2560 × 1440) for sharper scene detail than typical 2 MP models.
• Optics:2.8–12 mm motorised lens (4× optical zoom) with approx. 2 s wide→tele zoom time and up to 16× digital zoom.
• Low-light & WDR:True WDR 120 dB and DarkFighter support; colour imaging down to 0.005 Lux.
• Night vision:Up to 20 m IR illumination for dark scenes.
• Durability:IP66 weatherproof and IK10 vandal-resistant dome for outdoor use.
• Power & connectivity:PoE (802.3af) or 12 V DC, ONVIF support, H.265+/H.265/H.264+/H.264 codecs.
• Recording & analytics:microSD up to 256 GB, NAS/ANR support, and smart detection features such as face, intrusion and line crossing detection.

Detailed specifications and benefits

The PTZ-N2404I-DE3(F) uses a 1/3" progressive scan CMOS sensor capable of producing 4 MP resolution (2560 × 1440). Higher pixel density provides more usable detail across the monitored scene, making it easier to recognise faces and vehicles at moderate distances compared with 2 MP alternatives. Support for H.265+ and H.265 compression reduces bandwidth and storage demands versus older H.264 streams, which is helpful for multi-camera installations or when recording continuously to NAS or microSD.

The 2.8–12 mm motorised lens gives 4× optical zoom and a fast zoom transition (approx. 2 seconds wide-to-tele). The camera offers up to 16× digital zoom for closer inspections, although true optical zoom will retain the best image quality. Pan spans 0°–330° and tilt 0°–90°, with configurable pan/tilt speeds (0.1–100°/s) and up to 300 presets — useful for patrol patterns and rapid repositioning during an event.

True WDR (120 dB) helps resolve scenes with extreme brightness differences, such as entrances and glass facades. Combined with 3D DNR, BLC/HLC and EIS, the camera maintains usable images in challenging lighting. DarkFighter low-light support and a colour minimum illumination of 0.005 Lux mean the unit can capture colour images at lower ambient light levels than many entry-level cameras. When light falls below the sensor threshold, the 20 m IR comes into play to provide monochrome night view.

Housed in a compact dome measuring Ø130.7 × 101.7 mm and weighing around 0.53 kg, the unit is IP66-rated for dust and water ingress and IK10-rated for impact resistance. It is rated to operate from −20°C to 60°C, making it suitable for most temperate outdoor conditions. Proper mounting and weatherproof cable entry are essential to preserve these protections; installers should follow recommended practices to avoid leaks and corrosion.

The camera supports PoE (802.3af), simplifying installation by carrying power and data over one Ethernet cable. Where PoE is not available, a regulated 12 V DC, 1.5 A supply is supported. Audio features include a built-in microphone plus audio line in/out for two-way or recorded audio channels. For local recording the camera accepts a microSD card up to 256 GB; network recording to NAS or an NVR (ONVIF) is also supported and can be combined with ANR (Automatic Network Replenishment) to reduce data loss during network outages.

Use cases and scenarios where this camera excels

• Perimeter and entrance monitoring:The combination of PTZ repositioning and presets allows operators to monitor gates, driveways and access points, zooming in quickly when motion is detected.
• Small to medium car parks:The camera’s 4 MP resolution and optical zoom are suitable for overview surveillance and moderate close-ups of vehicles and people across a compact car park area.
• Retail and commercial yards:Durable IP66/IK10 housing protects against vandalism and weather in commercial sites, while WDR manages scenes with mixed lighting such as loading bays.
• School and campus perimeters:Use presets to patrol fixed routes around playgrounds, entrances and visitor car parks during and after hours.
• Multi-site or budget-conscious deployments:PoE and efficient H.265+ compression help reduce installation complexity and ongoing storage costs.

How it compares to similar cameras on the market

The HiLook PTZ-N2404I-DE3(F) sits in the compact, entry-to-mid-range PTZ category. Compared with basic fixed domes, it adds active PTZ capability and presets for flexible monitoring. Versus larger, more expensive PTZs with 20×–30× optical zoom or higher-resolution sensors (4K/8 MP), this model trades extreme reach and ultra-fine detail for a lower purchase price, smaller form factor and simpler power requirements.

Advantages compared to many competitors in the same price bracket include True WDR 120 dB, DarkFighter low-light support and an IK10 rating — features not always found together at this price point. The inclusion of H.265+ and ONVIF support improves interoperability and reduces storage and bandwidth needs relative to older H.264-only devices.

Limitations to consider: the 4× optical zoom restricts effective identification range compared with high-zoom PTZs, and the IR illumination is optimised for up to ~20 m, so very large outdoor areas or long-range LPR (license plate recognition) tasks may require a higher-zoom or higher-illumination model. Also, while the camera offers many enterprise-class features, it is best suited for installations that prioritise value and ruggedness over long-range zoom or ultra-high resolution.

Conclusion: Why choose the HiLook PTZ-N2404I-DE3(F)?

The HiLook PTZ-N2404I-DE3(F) is a strong candidate for projects that need a compact, weatherproof PTZ camera with good image quality, flexible installation options and a modest price point. Its 4 MP sensor, True WDR and DarkFighter low-light performance deliver useful image quality across a variety of lighting conditions, while PoE, microSD support and ONVIF compatibility simplify deployment and integration into existing systems.

For perimeter monitoring, small car parks, storefronts and general commercial site surveillance where extreme long-range zoom is not required, the PTZ-N2404I-DE3(F) strikes a practical balance of features, durability and cost-efficiency. Before purchase and installation, verify local certifications (CE/UKCA where applicable), confirm warranty and support terms with your supplier, and plan mounting, power and cable entry to maintain the IP66/IK10 protections.

In short:if you want a compact, vandal-resistant outdoor PTZ that offers 4 MP clarity, practical optical zoom and modern codecs at an accessible price, the HiLook PTZ-N2404I-DE3(F) is worth considering for many small-to-medium surveillance projects.
