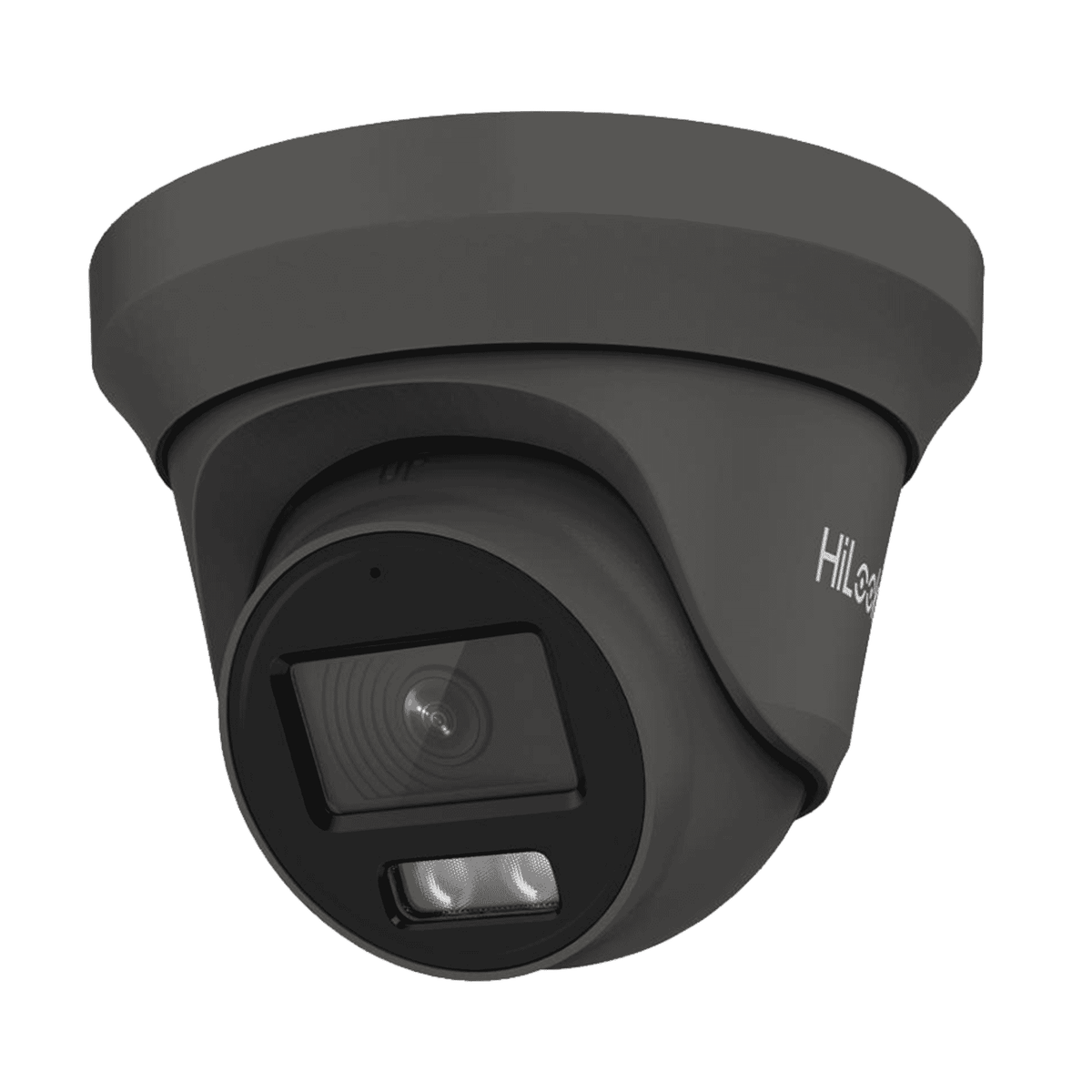

HiLook THC-T259-MS 3K ColorVu Turret Camera, 2.8 mm, Metal IP66

Introduction to the HiLook THC-T259-MS and its key features

HiLook THC-T259-MS — 3K ColorVu Turret Camera (2.8 mm)is a compact, metal‑bodied Turbo‑HD analogue turret camera designed for 24/7 surveillance with vivid full‑colour night imaging. Delivering a 3K (2960 × 1665) resolution, HiLook's ColorVu technology, Audio‑over‑Coax (AoC) support, and a rugged IP66 metal housing make this camera an attractive choice for installers, small businesses and homeowners who want clearer, colour footage around the clock without moving to an IP/NVR ecosystem.

Key features at a glance:

• 3K (2960×1665) resolution for sharper detail than 1080p
• ColorVu night imaging with a large F1.0 aperture and built‑in white LED (illumination up to 40 m)
• Audio‑over‑Coax (AoC) — built‑in microphone support carried on the same coax cable
• Switchable video output (TVI/AHD/CVI/CVBS) for wide DVR compatibility
• Rugged metal housing, IP66 weather rating and wide operating temperature range

Detailed specifications and benefits

The THC-T259-MS uses a 3K CMOS sensor to produce a resolution of 2960 × 1665, giving a noticeable advantage in detail capture compared with traditional 1080p analogue cameras. Frame rate support includes TVI: 3K@20fps and compatibility with 4MP and 1080p modes at standard frame rates on AHD/CVI/TVI. Digital WDR and 2D noise reduction are provided to improve visibility in scenes with mixed lighting and reduce noise in low‑light conditions.

Benefit: higher resolution helps with identification of faces, vehicle plates at close to medium range, and generally provides clearer evidence when detail matters.

The camera comes with a fixed 2.8 mm lens (113° horizontal field) and is also available in a 3.6 mm option (88° H). With a bright F1.0 aperture and a built‑in white LED, the ColorVu system enables full‑colour imaging even at night. The minimum illumination is 0.001 Lux with AGC on, and 0 Lux when the white light is active. The white LED has a practical illumination reach of up to 40 m.

Benefit: colour detail at night—such as clothing, vehicle colours and signage—improves situational awareness and can be vital for investigations. The wide aperture also improves performance in dim scenes without relying solely on LED output.

Audio‑over‑Coax (AoC) support means the built‑in microphone audio can be transmitted on the same coaxial cable used for video. The THC-T259-MS supports switchable TVI/AHD/CVI/CVBS outputs, making it compatible with a broad range of Turbo‑HD analogue DVRs.

Benefit: AoC reduces cabling complexity and installation time by eliminating separate audio cabling. Switchable outputs simplify integration with existing analogue DVR infrastructure and reduce the need for model‑specific purchases.

Power is 12 VDC (±25%) with a maximum power use of approximately 4.2 W. The metal housing provides physical robustness; the camera carries an IP66 weather rating and operates across a wide temperature range (-40 °C to 60 °C) and up to 90% non‑condensing humidity.

Benefit: low power consumption and common 12 VDC supply make the camera straightforward to power on standard CCTV installations. The metal IP66 housing ensures reliable outdoor use in harsh weather and industrial environments.

Compact dimensions (Φ127.92 mm × 97.8 mm) and a weight of approximately 480 g mean the turret is easy to mount on walls or ceilings without large mounting brackets. The M12 lens mount and fixed lens options simplify field choices between wider or narrower fields of view.

Use cases and scenarios where the THC-T259-MS excels

This camera is particularly well suited to situations where full‑time colour imaging and simple analogue integration are priorities. Typical scenarios include:

• Retail and storefronts:Colour at night helps identify clothing colours, signage and vehicle shades in parking areas or afterhours incidents.
• Residential entrances and driveways:High‑resolution 3K imaging combined with ColorVu makes it easier to recognise faces, read close vehicle details and capture happenings at front doors or drives.
• Small warehouses and loading bays:Rugged metal housing and wide temperature range suit semi‑industrial settings where reliable outdoor‑rated cameras are needed.
• Parking areas and perimeter monitoring:The integrated white LED (up to 40 m) plus wide aperture provide clear imagery across parking lots and boundary zones without deploying multiple IR cameras.
• Installers and contractors working on analogue upgrades:Switchable outputs and AoC support make the camera ideal for customers who want modern features but maintain an analogue DVR base.

Comparisons with similar products on the market

When evaluating the THC-T259-MS vs other surveillance options, several points stand out:

The THC-T259-MS delivers 3K resolution, which provides noticeably more detail than 1080p models. This is an advantage for identification tasks and evidence capture. Many 1080p turrets also rely on infrared (IR) illumination and record in monochrome at night; by contrast, ColorVu keeps footage in colour, improving interpretability.

Traditional IR cameras switch to monochrome at night and rely on reflected IR, which hides colour information. ColorVu's white LED and F1.0 optics maintain colour fidelity at low light. Trade‑offs include potentially higher visible illumination (white LED) which can create glare if pointed directly at reflective surfaces; placement planning reduces this risk.

IP/PoE cameras often offer higher feature density (analytics, higher bitrates, onboard Smart features) and simplified single‑cable installations with PoE. The THC‑T259‑MS, as an analogue Turbo‑HD camera, is typically more cost‑effective for sites that already have coaxial infrastructure or want to avoid NVR migration. For customers prioritising low cost and compatibility with existing DVRs, the THC‑T259‑MS is hard to beat. For new greenfield projects prioritising advanced analytics or large‑scale IP deployments, a modern IP camera may be preferable.

The 2.8 mm version gives a wide 113° horizontal view suited to close, wide scenes; a 3.6 mm variant (88°) offers more reach and less distortion. Choosing between them depends on mounting distance and the desired trade‑off between coverage and detail.

Conclusion — why the HiLook THC-T259-MS is a strong choice

The HiLook THC‑T259‑MS 3K ColorVu turret camera combines higher‑than‑HD resolution, full‑colour night imaging, AoC convenience and a rugged IP66 metal housing into a compact, cost‑conscious package. For installers and customers who need improved night‑time evidence without migrating away from analogue infrastructure, this camera is a practical and compelling option. Its switchable outputs maximize DVR compatibility, while the bright F1.0 optics and integrated white LED deliver colour clarity in low light that can materially improve incident interpretation and identification.

If you’re working within an analogue ecosystem and want a camera that brings modern low‑light colour performance and simplified installation, the HiLook THC‑T259‑MS is well worth considering.
