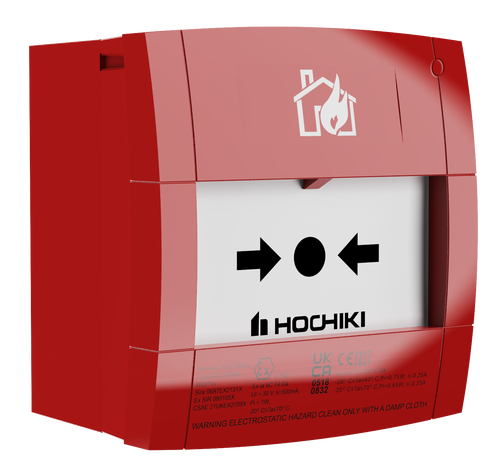

HOCHIKI CCP-E-IS conventional call point
About this product
Please note: this is a non-returnable item (excluding faulty goods)
HOCHIKI CCP-E-IS is a conventional call point.
The CCP-E-IS is a conventional call point based upon the industry standard KAC world series housing, and which can be used in hazardous areas.
Key features
- Supports either a 'Frangible' glass element or a 'Non Frangible' plastic element
- Terminals can accommodate up to a 2.5 mm2 solid conductor
- Approved to EN54 Part 12
- Rugged design
- ATEX Classification to II 1G Eex ia IIC T4
If you are matching this to an existing installation, work from the CCP-E-IS part number rather than the description.
Specifications
Environmental conditions
Physical characteristics
Power description
Attributes
Specifications
| Brand Name | HOCHIKI |
|---|---|
| Manufacturer Part Number | CCP-E-IS |
Environmental conditions
| Maximum Operating Temperature | 55°C |
|---|---|
| Minimum Operating Temperature | -10°C |
Physical characteristics
| Depth | 20.00mm |
|---|---|
| Height | 88.00mm |
| Weight | 173.00g |
| Width | 88.00mm |
Power description
| Input Voltage | 13-30V DC |
|---|
Attributes
| Input Voltage | 13-30V DC |
|---|---|
| Weight | 173.00g |
