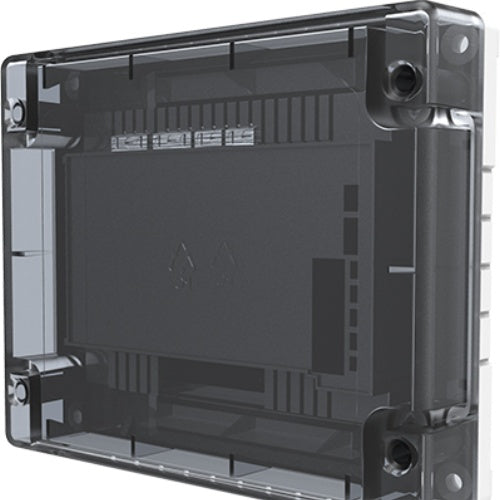

Hochiki CHQ-SZM2/DIN(SCI) module

Visit Fire Panel Modules & Interfaces
£ 71 50
(Incl. VAT)

About this product

Please note: this is a non-returnable item (excluding faulty goods)

HOCHIKI CHQ-SZM2/DIN(SCI) is a module.

Model CHQ-SZM2(SCI) is a Single Zone Monitor designed to allow up to 6 conventional detectors to be interfaced with Hochiki's ESP analog addressable system. The unit is also available as a DIN Rail mountable version with or without an integral short-circuit isolator. The CHQ-SZM2(SCI) utilizes simple DIL switches for reliable addressing.

A back box is also available (CHQBACKBOX) which, when used in conjunction with the CHQSZM2(SCI), increases the IP rating to IP65.

Key features

  • Loop Powered with Single Loop Address
  • Provides up to 6 Conventional Detectors
  • Remote LED output
  • Fully monitored for short and open circuit faults
  • Also available as DIN
  • Both Models Feature An Integral Short Circuit Isolator
  • Deeper, glanded IP65 backbox available
  • Can be used with CHQ-BACKBOX to comply with BS 7671
£ 71 50
Google Top Quality Store · Rated Exceptional
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£71.50 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Info about this product
Technical Details
Specifications
Brand Name
HOCHIKI
Manufacturer Part Number
CHQ-SZM2/DIN(SCI)
Product Type
Module
Certifications
RoHS compliance
Compliant
WEEE compliance
Compliant
Physical characteristics
Depth
24.00mm
Weight
114.00g
Width
119.00mm
Power description
Input Voltage
17-41V DC
Attributes
Input Voltage
17-41V DC
Weight
114.00g
Specifications
Certifications
Physical characteristics
Power description
Attributes

Specifications

Brand Name HOCHIKI
Manufacturer Part Number CHQ-SZM2/DIN(SCI)
Product Type Module

Certifications

RoHS compliance Compliant
WEEE compliance Compliant

Physical characteristics

Depth 24.00mm
Weight 114.00g
Width 119.00mm

Power description

Input Voltage 17-41V DC

Attributes

Input Voltage 17-41V DC
Weight 114.00g

HOCHIKI CHQ-SZM2/DIN(SCI) module

Hochiki CHQ-SZM2/DIN(SCI) module

Who this is for

For the installer — this is the module supplied under HOCHIKI part number CHQ-SZM2/DIN(SCI). Specify it by that part number.

In plain English: this is a module made by HOCHIKI. The part number CHQ-SZM2/DIN(SCI) is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this module is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods.

We do not quote a warranty term for this part.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact module I have been quoted? Check the manufacturer part number CHQ-SZM2/DIN(SCI) against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — the documentation attached to this listing was checked and names this exact part number. Documents that named only the family, or a different item, are not attached.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

HOCHIKI CHQ-SZM2/DIN(SCI) module
Hochiki

Hochiki CHQ-SZM2/DIN(SCI) module

£71.50

Please note: this is a non-returnable item (excluding faulty goods)

HOCHIKI CHQ-SZM2/DIN(SCI) is a module.

Model CHQ-SZM2(SCI) is a Single Zone Monitor designed to allow up to 6 conventional detectors to be interfaced with Hochiki's ESP analog addressable system. The unit is also available as a DIN Rail mountable version with or without an integral short-circuit isolator. The CHQ-SZM2(SCI) utilizes simple DIL switches for reliable addressing.

A back box is also available (CHQBACKBOX) which, when used in conjunction with the CHQSZM2(SCI), increases the IP rating to IP65.
