Hochiki K408 power supply, Panel Mount
About this product
Please note: this is a non-returnable item (excluding faulty goods)

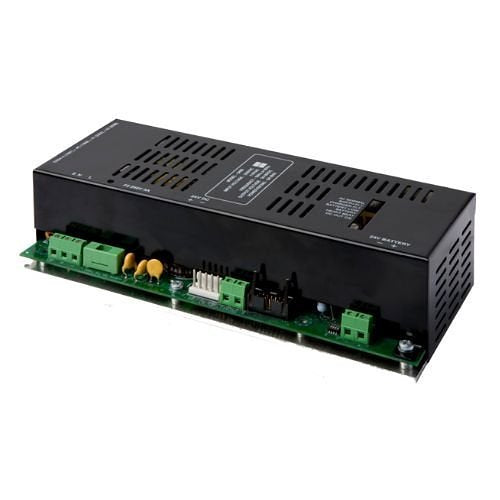

HOCHIKI K408 is a power supply.
The K408 is a universal input switching power supply capable of delivering a full 290W of continuous power for fire alarm systems. Suitable for charging a range of sealed lead acid batteries from 7Ah to 45Ah, the K408 power supply features complete monitoring of primary and secondary power sources with fully temperature compensated battery charging and battery high impedance monitoring. The K408 power supplies are available as chassis only units or mounted in a range of enclosures suitable for various sizes of battery.
Key features
- Continuous 8A load output while charging fully depleted batteries
- Charges up to 45Ah batteries
- Approved to EN54-4
- 94V To 253VAC input
- Mains fail monitoring with LED indication and output
- Battery disconnection monitoring with LED indication and output
- Low battery monitoring with LED indication and output
- Earth fault monitoring with LED indication and output
- Low battery cut out
- Temperature compensated battery charging
If you are matching this to an existing installation, work from the K408 part number rather than the description.
-
Download
- K408 — Product Manual
Specifications
Technical information
Certifications
Power description
Product information
Miscellaneous
Attributes
Specifications
| Brand Name | HOCHIKI |
|---|---|
| Manufacturer Part Number | K408 |
| Product Type | Power Supply |
Technical information
| Output Voltage | 24V DC |
|---|
Certifications
| Certifications & Standards | EN54-4 |
|---|---|
| RoHS compliance | Out of Scope |
| WEEE compliance | Out of Scope |
Power description
| Input Voltage | 253V AC |
|---|---|
| Output Power | 290W |
Product information
| Mount Type | Panel Mount |
|---|
Miscellaneous
| Compatibility | 7Ah to 45Ah batteries |
|---|
Attributes
| Compatibility | 7Ah to 45Ah batteries |
|---|---|
| Input Voltage | 253V AC |
| Output Voltage | 24V DC |
