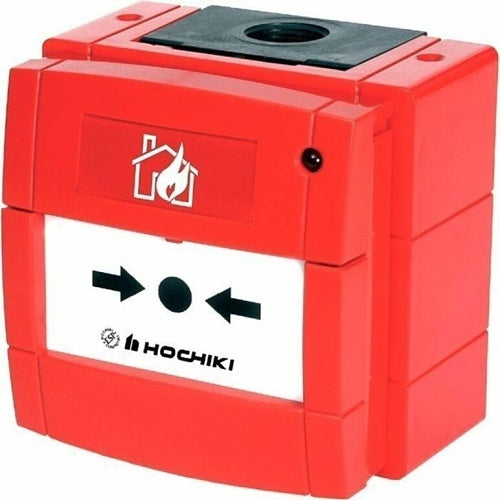

Hochiki HCPWMSCI weatherproof call point, Red

Please note: this is a non-returnable item (excluding faulty goods)

HOCHIKI HCPWMSCI is a weatherproof call point.

Model HCP-WM(SCI) is a weatherproof Manual Call Point with integral short-circuit isolator, which is fully compatible with Hochiki's ESP analogue addressable protocol. The unit incorporates a bi-coloured LED, which can be selected as pulsing/non-pulsing for communications polling and is continuously lit when the unit is operated - in these two states the LED will show red. The LED will show amber when a short-circuit is present but will switch to red if the unit is activated.

The unit operates by pressing the EN54 compliant non-frangible (plastic) element and produces a high level ESP interrupt. A built in test function initiated by the control panel ensures the integrity of the device at all times and the device can be tested by insertion of a test key in the underside of the unit. Two terminal blocks are provided for easy connection to the loop wiring.

The unit is addressed using the TCH-B100 Hand Held Programmer for quick and reliable addressing. An optional glass element is also available.

Key features

• Integral short-circuit isolator for safety
• Compatible with Hochiki's ESP analogue addressable protocol
• EN54 compliant non-frangible (plastic) element
• Easy connection with two terminal blocks
• Quick addressing with TCH-B100 Hand Held Programmer
• Optional glass element available
