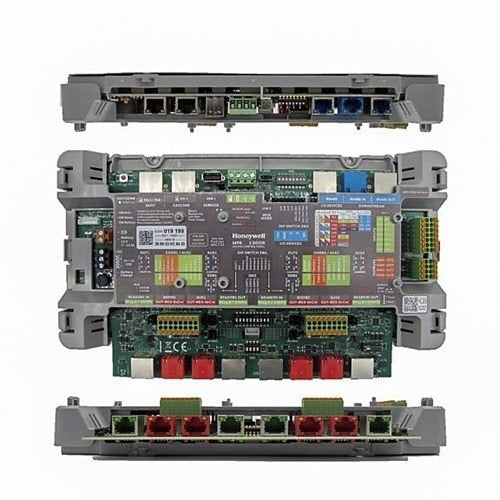

Honeywell Commercial Security MPA2C34 intelligent control panel

Please note: this is a non-returnable item (excluding faulty goods)

Honeywell Commercial Security MPA2C34 is an intelligent control panel.

The Honeywell MAXPRO Access MPA2 and MPA4 controller provide intelligent, flexible, and scalable cloud-based and web-based access control at the edge. MAXPRO Access MPA2 or MPA4 enables users to securely manage their system anywhere there's an Ethernet/Internet connection-with no dedicated PC or software costs. The userfriendly design (Push-in connectors and RJ45 'Click 'n Done' approach) makes it simple to install and easy to operate and maintain.

The MPA Controller gives you all the benefits of traditional access control, such as helping you secure doors, manage employee access and manage sites remotely. It also lets you pull reports easily to meet compliance requirements. With a browser-based interface, your learning curve and training times are significantly decreased.

No dedicated software is required-simply log on and you're ready to go, securely-from the office or anywhere. You can manage MPA using the embedded browser, MAXPRO® Cloud's secure cloud infrastructure, or WIN-PAK®'s integrated security suite. So as your system grows, MPA grows with you.

FEATURES AND BENEFITS | INCREASED PRODUCTIVITY

New, faster, and more intuitive user interface reduces install time, training time and improves operational efficiencies

Embedded browser for smaller installs is simple and easy to use with no additional software required

Multi-site Access management for global credentials is made easy with MAXPRO Cloud

Compatible with WIN-PAK on premise software or MAXPRO Cloud for advance features such as video and intrusion integration, mobile credentials, advanced reporting and rules

FASTER INSTALLATION

Device Utility App allows for fast and easy initial set up and host mode selection via BLE

Standard power supply connection or Power over Ethernet (PoE+) connectivity

RJ45 Click & Done connectivity for doors and readers reducing install time and cabling costs

Built-in Fire Input override requires no additional relays, giving easy escape routes and first responder access

Network cascade feature provides easy ethernet hopping between panels

Built-in OSDP Reader manager for fast and easy addressing of OSDP readers

LOWER COST OF OWNERSHIP

Designed to scale with your business, single to multi-site without replacing hardware

Cloud ready access panel for multi-site integrated systems

Multi-site f/w management via cloud to keep panels secure and up-to-date

Supports existing Wiegand hardware and OSDP ready for secure reader upgrades

Mobile credential deployment via MAXPRO Cloud and WIN-PAK

ENHANCED SECURITY

256-bit AES and TLS 1.2 encrypted communication between panel and hosts (Browser, MAXPRO Cloud and WIN-PAK)

Card-to-Cloud secure ensuring multi-site secure installations

Security certificate capability ensures secure and trusted connections to the panel

128-bit AES Encrypted bidirectional reader-to-panel communication (OSDP V2)

Fire relays and panel tamper switch notifications to host software

FLEXIBLE 3-IN-1 CAPABILITY

Embedded web browser, MAXPRO cloud, or WIN-PAK from one panel provides flexible install options

Fully scalable from small basic access control for a single site up to multi-site, enterprise level access control deployments

Compatible with existing NetAXS installations for easy replacement and expansions

Key features

• Intelligent control panel for 4 doors and 4 readers
• Cloud-based and web-based access control
• No dedicated PC or software costs
• User-friendly design with push-in connectors and RJ45
• Secure remote management via Ethernet/Internet
• Browser-based interface for easy operation
• Compatible with MAXPRO Cloud and WIN-PAK
• Fast installation with Device Utility App and BLE
• Power over Ethernet (PoE+) connectivity
• 256-bit AES and TLS 1.2 encrypted communication

If you are matching this to an existing installation, work from the MPA2C34 part number rather than the description.
