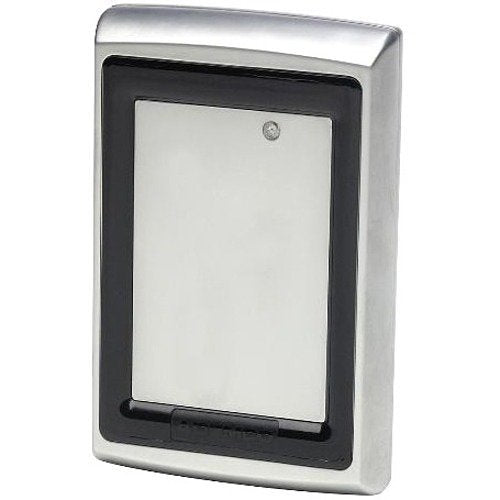

Honeywell Commercial Security OP90HONS metal single-gang reader, Silver
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Honeywell Commercial Security OP90HONS is a metal single-gang reader from the OmniProx range.
Honeywell’s OmniProx family is a complete line of 125 kHz HID compatible proximity readers that delivers outstanding and consistent performance in a small package with attractive styling and colors to fit any décor. All OmniProx readers (except the OP90 and OP95) include three bezels: black, charcoal gray and ivory and are constructed with rugged polycarbonate materials potted for both indoor and outdoor applications. The OmniProx family of readers combines unique functionality, highquality engineering and design for a variety of applications in the electronic access control market.
OmniProx readers offer superb reliability and consistent read range. Installation is simple and fast with a mounting template included in all models. For locations that require a proximity reader to be able to withstand vandal-prone environments, the OP90 and OP95 vandal resistant readers are an ideal choice.
Key features
- Adhesive-backed mounting template reduces installation time and risk of mounting errors
- Compatible with card formats up to 85 bits in length including 26-bit, 34-bit and Corporate 1000 formats
-
Download
- OP90HONS — Product Manual
Specifications
General information
Technical information
Certifications
Interfaces/ports
Physical characteristics
Power description
Product information
Miscellaneous
Attributes
Specifications
| Brand Name | Honeywell Commercial Security |
|---|---|
| Manufacturer Part Number | OP90HONS |
| Product Series | OmniProx |
| Product Type | Card Reader Access Device |
General information
| Application/Usage | Door |
|---|---|
| Packaged Quantity | 1 |
Technical information
| Bluetooth | No |
|---|---|
| Connectivity Technology | Wired |
| Host Interface | Wiegand |
| Identification Method | Contactless Card (RFID/Proximity) |
| Maximum Operating Range | 38.10mm |
Certifications
| RoHS compliance | Compliant |
|---|---|
| WEEE Compliant | Not Applicable |
Interfaces/ports
| Network (RJ-45) | No |
|---|---|
| Wiegand | Yes |
Physical characteristics
| Colour | Silver |
|---|---|
| Depth | 20.10mm |
| Height | 119.90mm |
| Width | 76.20mm |
Power description
| Input Voltage | 16V DC |
|---|
Product information
| Mount Type | Surface Mount |
|---|
Miscellaneous
| Compatibility | OmniProx ISO Card (PVC4) OmniProx ISO Card with Magnetic Stripe (PVC5) OmniProx Clamshell Card (PX4) ProxCard II ISOProx II |
|---|---|
| Environmental certification | CE, RoHS |
| Indoor or outdoor use | Indoor, Outdoor |
Attributes
| Compatibility | OmniProx ISO Card (PVC4); OmniProx ISO Card with Magnetic Stripe (PVC5); OmniProx Clamshell Card (PX4); ProxCard II; ISOProx II |
|---|---|
| Input Voltage | 16V DC |
| Package Contents | 2 x Screw Anchors; 1 x PIN Torx Security Screw; 1 x Phillips Head Screw; 1 x PIN Torx Key Tool , OmniProx 12V Vandal Resistant Metal Proximity Reader; 1 x Installation Manual; 3 x Colored Bezels (Black, Charcoal Gray & Ivory); 1 x Adhesive Mounting Template; 2 x Mounting Screws |
