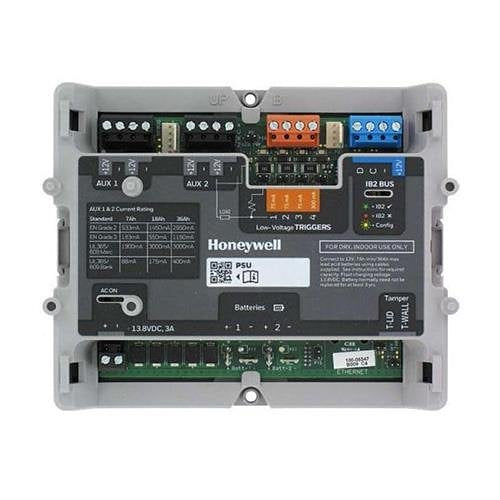

Honeywell Commercial Security MPIPSU35 power supply, Enclosure
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Honeywell Commercial Security MPIPSU35 is a power supply.
The MPI Remote Power Supply is a supplemental smart power supply. In the event the total current draw of all modules connected to the control panel’s auxiliary output is exceeded, the Remote Power Supply (RPS) provides additional 12 VDC power outputs to those modules and peripherals requiring additional power (such as door control modules, keypads, motion detectors, glass break detectors, sounders, etc.). It also provides four programmable low-voltage trigger outputs.
Key features
- Two fully protected, monitored 12V DC 1.5 A outputs
- Four programmable low-voltage trigger outputs
- Support for up to 2 x 18 Ah backup batteries, supervised
- Designed for mounting in MPI enclosure
- Short isolation and lid and off-wall tamper protection
If you are matching this to an existing installation, work from the MPIPSU35 part number rather than the description.
Specifications
Technical information
Certifications
Physical characteristics
Power description
Miscellaneous
Attributes
Specifications
| Brand Name | Honeywell Commercial Security |
|---|---|
| Manufacturer Part Number | MPIPSU35 |
| Product Type | Power Supply |
Technical information
| Amperage | 5.00A |
|---|---|
| Connectivity Technology | Wired |
| Output Voltage | 12V DC |
Certifications
| CE marking | Yes |
|---|---|
| LPCB Certified | Yes |
| SBSC Certified | Yes |
Physical characteristics
| Depth | 127.00mm |
|---|---|
| Form Factor | Enclosure |
| Height | 42.00mm |
| Weight | 250.00g |
| Width | 157.00mm |
Power description
| Input Voltage | 110-230V AC |
|---|---|
| Output Current | 1.5000A |
Miscellaneous
| Compatibility | Honeywell Maxpro Intrusion Peripherals |
|---|
Attributes
| Amperage | 5.00A |
|---|---|
| Compatibility | Honeywell Maxpro Intrusion Peripherals |
| Input Voltage | 110-230V AC |
| Output Current | 1.5000A |
| Output Voltage | 12V DC |
| Weight | 250.00g |
