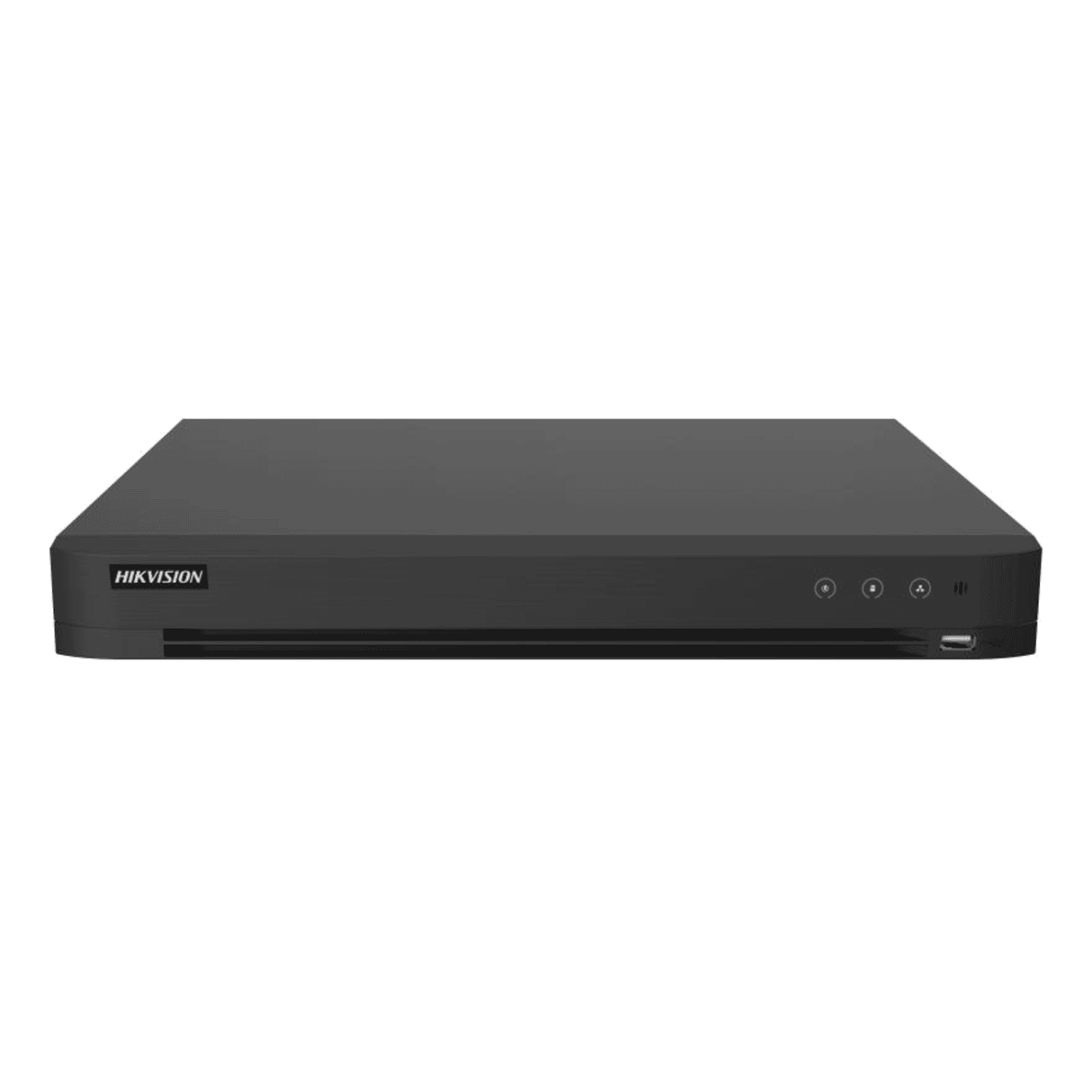

iDS-7232HQHI-M2/XT 32-ch Turbo HD AcuSense DVR, 2×SATA, 4K HDMI

Introduction: Meet the iDS-7232HQHI-M2/XT

The iDS-7232HQHI-M2/XT is a 1U, 32‑channel Turbo HD AcuSense DVR designed for hybrid analogue/IP CCTV systems. Built around Hikvision’s H.265 Pro+ encoding and AcuSense AI capabilities, this recorder aims to reduce false alarms while providing reliable human and vehicle classification, perimeter protection and basic on‑recorder face capture. With a 4K HDMI output, two SATA bays for local storage and support for up to eight IP channels (expandable in some configurations), it sits squarely in the mid‑to‑upper tier of on‑premise DVRs for medium and large installations.

Key features at a glance

• Channels:32 analogue BNC inputs plus up to 8 IP channels (config dependent).
• AI detection:AcuSense human & vehicle classification, perimeter protection and AcuSearch.
• Face functions:On‑recorder face capture (4 channels) with support for up to 16 libraries.
• Encoding & video:H.265 Pro+/H.265/H.264 support, multi‑resolution recording up to 3K/5MP lite on supported inputs.
• Output & storage:4K HDMI output, VGA and CVBS, plus 2×SATA bays (up to 12 TB per bay) and USB export.

Detailed specifications and benefits

• Model & form factor:iDS-7232HQHI-M2/XT, 1U rack or desktop chassis, compact profile (approx. 384 × 313 × 52 mm).
• Analogue & IP inputs:32 BNC analogue inputs (1.0 Vp‑p, 75 ) with up to 8 IP channels. This hybrid design makes the unit ideal for sites that mix legacy coax cameras and newer IP cameras.
• Weight & power:Lightweight at 2.1 kg and powered by 12 VDC, 5 A (power consumption  60 W), enabling flexible placement and modest power requirements.

• Encoding:H.265 Pro+/Pro/H.264+ support delivers better compression and bandwidth efficiency compared with older codecs. The H.265 Pro+ mode helps reduce storage and network load while retaining useful image quality.
• Recording & decoding:Supports up to 3K/5MP lite on supported inputs and decodes up to 24 channels at 1080p@30fps for live viewing or local monitor walls.
• Bandwidth:Up to 256 Mbps total network throughput, suitable for multisite camera streams when configured within limits.

• AcuSense:Human and vehicle classification reduces nuisance alarms from shadows, animals and weather. Perimeter protection enables rule‑based event triggers for virtual lines and intrusion zones, improving the signal‑to‑noise ratio for security staff.
• Face capture:On‑recorder capture across 4 channels and support for up to 16 face libraries is useful for entry control, incident review and targeted searches, though it is limited compared with dedicated face systems.

• Storage:Two SATA bays supporting up to 12 TB each provide substantial local retention for many deployments. Local storage reduces dependency on networked storage and cloud subscriptions.
• Outputs & audio:4K HDMI (3840d7 2160 @30Hz) for high‑resolution monitoring, VGA and CVBS outputs for compatibility, and single‑channel RCA audio in/out for on‑site audio monitoring or two‑way configurations where supported.
• Connectivity:Gigabit Ethernet (1 d7 RJ‑45), front USB2.0 and rear USB3.0 for easy export and peripheral connections. Protocol support includes TCP/IP, PPPoE, DHCP, DDNS, ONVIF and Hik‑Connect.

• Reduced false alarms:AcuSense AI reduces time wasted on false events, enabling faster response to real incidents and lower review time for footage.
• Hybrid flexibility:Mix and match legacy analogue cameras with newer IP devices as budgets and upgrade cycles allow, protecting prior investments.
• Efficient storage:H.265 Pro+ and dual large HDD bays reduce ongoing storage costs while supporting multi‑week retention depending on camera counts and resolution.
• Scalable monitoring:4K HDMI output combined with multi‑channel decoding supports both high‑resolution single‑monitor needs and multi‑tile operator stations.

Use cases and scenarios where this DVR excels

The iDS-7232HQHI-M2/XT is built for medium to large on‑premise CCTV installations where reliability, event accuracy and hybrid support are priorities. Typical scenarios include:

• Retail chains:Multi‑camera stores and shopping centres benefit from AcuSense’s human/vehicle classification to cut down on false motion alarms and make loss prevention teams more efficient. Face capture helps identify repeat offenders when used alongside appropriate privacy and legal controls.
• Commercial real estate:Office parks and multi-tenant buildings often combine legacy analogue exterior cameras with newer IP interior cameras; a hybrid DVR simplifies centralized recording and monitoring.
• Education & campuses:Schools and universities need reliable perimeter protection for large grounds and need to minimise false alarms from animals or weather; AcuSense helps focus response on genuine incidents.
• Municipal and city installations:Traffic monitoring and small‑scale public safety deployments can use vehicle classification and high‑res HDMI outputs for control room monitoring without requiring full cloud analytics.
• Industrial & logistics sites:Warehouses and loading yards benefit from long‑term local recording, AI‑enabled event filtering and the ability to integrate mixed camera fleets across older and newer facilities.

How it compares to similar products

When evaluating the iDS-7232HQHI-M2/XT against other recorders, consider three axes: channel density and hybrid support, on‑board AI capabilities, and storage/output features.

• Versus basic DVRs (16–32 channels, no AI):Many entry DVRs provide the same channel counts but lack AcuSense and advanced compression. The AcuSense advantage reduces false alarms and improves operational efficiency, worth the premium in staffed or high‑value sites.
• Versus pure IP NVRs:Full NVRs can offer higher IP channel counts, PoE integration and advanced analytics when paired with smart IP cameras. The iDS-7232HQHI-M2/XT, however, is ideal where existing coax infrastructure remains and where a hybrid approach is preferred to stage upgrades.
• Versus Hikvision’s non‑AcuSense Turbo HD models:The AcuSense series adds AI filtering and face capture to the core Turbo HD feature set. If the installation needs accurate alarm filtration and perimeter rules out of the box, the AcuSense model is the stronger choice.
• Cost and value:Compared to rackmount NVRs with similar AI features, it offers a cost‑efficient hybrid option, though high‑end NVRs may provide larger HDD capacity bays or integrated PoE switches for fully IP setups.

Conclusion: Why the iDS-7232HQHI-M2/XT is a strong choice

The iDS-7232HQHI-M2/XT strikes a practical balance between channel density, hybrid compatibility and on‑device AI. For organisations that need to preserve existing analogue cameras while gradually adopting IP technology, it offers a clear migration path. The AcuSense features bring tangible operational benefits by reducing false positives and offering perimeter protection and face capture for targeted investigations. H.265 Pro+ encoding and dual large HDD bays make it cost‑effective to store longer durations of high‑quality video without an immediate move to expensive networked storage.

While it is not a complete replacement for large‑scale IP NVR solutions or specialized face recognition systems, it is a versatile, economical and capable DVR for retail, education, commercial and municipal settings. As with any security deployment, to get the best results plan camera placements and retention requirements, engage professional installers for AcuSense commissioning, and verify regional certification and warranty terms with your supplier prior to purchase.
