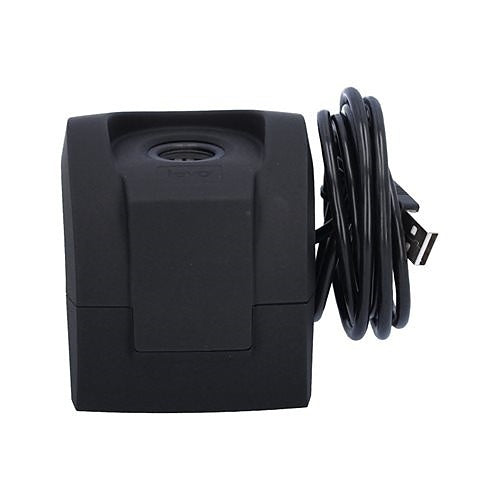

ievo IEVO-UDR fingerprint enrollment unit, Desktop
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Ievo IEVO-UDR is a fingerprint enrollment unit from the IEVO-U range.
The ievo desktop registration units manage the fingerprint enrolment process remotely. Using a USB connection, the units plug directly into a PC, making it quick and easy to enrol new users directly to the management software.Additionally, the registration units eliminate the need to enrol users via active or in-use readers – an essential solution for a high traffic system. This IEVO-UDR desktop enrolment units can be used in conjunction with either the ultimate™ reader head or a combination of ultimate™ and micro™ reader heads.
Key features
- High quality fingerprint registration/enrolment units
- USB powered - no additional PSU required
- Makes enrolment quick, easy, and non-disruptive
- 500dpi image resolution
- Enrolment time 1.0sec from placement to image
If you are matching this to an existing installation, work from the IEVO-UDR part number rather than the description.
Specifications
Technical information
Interfaces/ports
Physical characteristics
Product information
Attributes
Specifications
| Brand Name | Ievo |
|---|---|
| Manufacturer Part Number | IEVO-UDR |
| Product Series | IEVO-U |
| Product Type | Desktop Registration |
Technical information
| Device Supported | PC |
|---|---|
| Identification Method | Fingerprint |
| Maximum Fingerprint Storage Capacity | 50000 |
| Sensor Type | Image Sensor |
Interfaces/ports
| Number of USB Ports | 1 |
|---|---|
| USB Standard | USB 2.0 |
Physical characteristics
| Cable Length | 2.00m |
|---|---|
| Colour | Black |
| Depth | 99.00mm |
| Form Factor | Desktop |
| Height | 66.00mm |
| Width | 69.00mm |
Product information
| Mount Type | Desktop Mount |
|---|
Attributes
| Device Supported | PC |
|---|---|
| Environmental status | Yes |
