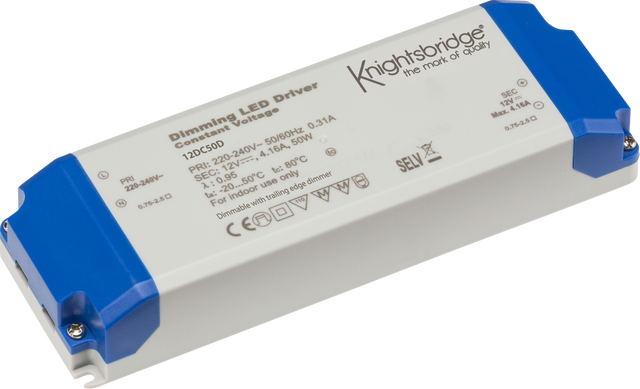

Dimmable 12V 50W LED Driver
The IP20 12V 50W DC Dimmable LED Driver is specifically designed for internal use and is compatible with most trailing-edge dimmers. Please check dimmer compatibility prior to installation. Key features include:
- Max. output 50W
- Dimmable with most trailing edge dimmer
- Protections: open circuit, short circuit, overload, over temperature
- SELV output
- Protection Class II
Ensure to adhere to safety standards and guidelines during installation.
Specifications
Dimensions
Lamp
Driver
Specifications
Class | II |
---|---|
Finish | White |
IP Rating | IP20 |
Construction | ABS |
Primary Voltage | 230V 50Hz |

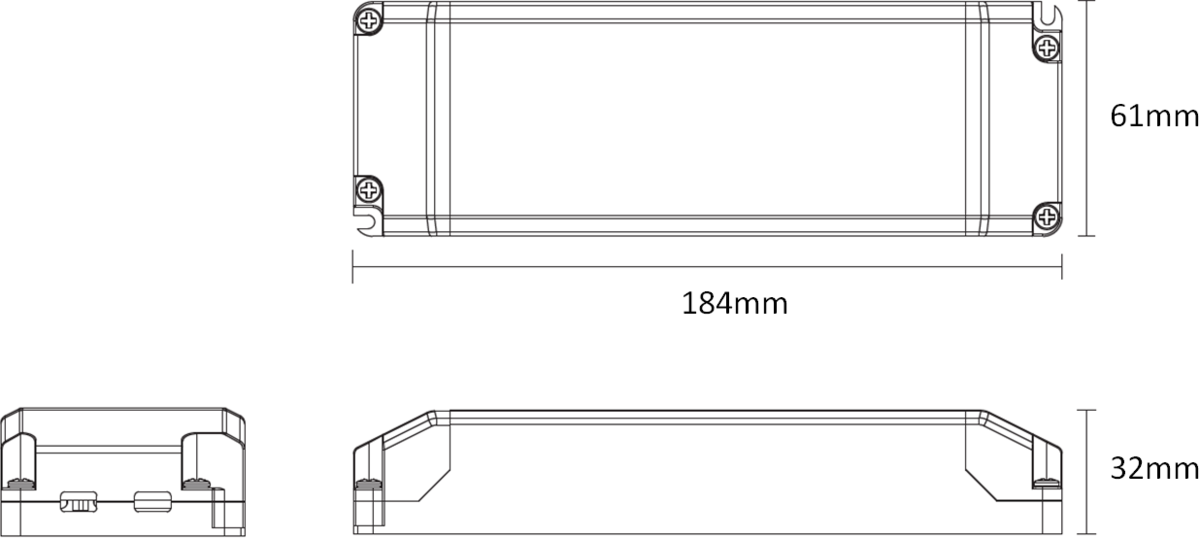

Dimensions
Width | 61 mm |
---|---|
Height | 32 mm |
Length | 184 mm |
Lamp
Dimmable | Trailing-edge only* |
---|
Driver
Driver Type | Constant Voltage |
---|
Dimmable 12V 50W LED Driver features

Dimmable 12V 50W LED Driver, Constant Voltage, Trailing Edge Compatible, White Finish, IP20 Rated, SELV Output, 12DC50D
