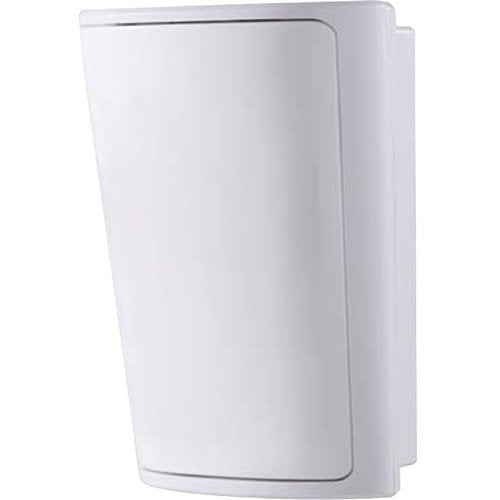

Visonic 0-103432 PIR motion detector
About this product
JCI PowerG 0-103432 is a PIR motion detector.
The MP-802 PG2 is a smart dual-function indoor PIR motion detector that offers reliable motion detection and temperature monitoring performance, in one easy-to-install and attractive device. Based on the market-leading wireless indoor motion detector and built-in PowerG leading-edge wireless intrusion technology, the MP-802 PG2 delivers proven, market-leading intrusion protection with superior immunity to false alarms. It is compatible with the PowerMaster family of intrusion alarm systems.
Designed for contemporary aesthetics, the compact MP-802 PG2 has a sleek, modern look that blends in with any décor. It is perfectly shaped for unobtrusive corner placement.
Key features
- Motion and temperature* detection in a single device
- Built-in PowerG leading-edge wireless intrusion technology
- Compatible with PowerMaster alarm systems
- Advanced True Motion Recognition™ algorithm differentiate between intruders and other disturbances
- Pet-immune - Target Specific Imaging™ distinguishes between humans and pets weighing up to 38 kg (85 lb)
- Fresnel and cylindrical lenses for uniform detection sensitivity with an operating range of up to 12 m (39 ft), with no vertical adjustment needed
- Faster, easier installations and maintenance
- Battery lasts 6-8 years with typical use
- Easily accessible battery compartment
- Small size; perfectly shaped for unobtrusive corner placement
If you are matching this to an existing installation, work from the 0-103432 part number rather than the description.
-
Download
- 0-103432 — Product Manual
Specifications
General information
Technical information
Certifications
Environmental conditions
Physical characteristics
Power description
Miscellaneous
Attributes
Specifications
| Brand Name | JCI PowerG |
|---|---|
| Manufacturer Part Number | 0-103432 |
| Product Type | Motion Sensor |
General information
| Application/Usage | Indoor |
|---|
Technical information
| Connectivity Technology | Wireless |
|---|---|
| Maximum Motion Sensing Distance | 12m |
| Passive Infrared Sensor (PIR) | Yes |
| Sensor Type | Infrared Sensor |
Certifications
| Security Grade | Grade 2 |
|---|
Environmental conditions
| Operating Temperature (T-T) | -10-50°C |
|---|
Physical characteristics
| Depth | 42.00mm |
|---|---|
| Height | 83.00mm |
| Weight | 89.90g |
| Width | 61.00mm |
Power description
| Power Source | Battery |
|---|
Miscellaneous
| Additional Information | The ability to distinguish between intruders and other disturbances, as well as humans and pets, ensures higher reliability and reduced false alarms |
|---|---|
| Compatibility | PowerMaster alarm systems |
| Features | Digital Pet immune PIR, Easy to install, Easy to maintain, Long lasting battery, PowerG Technology, Sleek modern design, Tamper Protection |
Attributes
| Compatibility | PowerMaster alarm systems |
|---|---|
| Indoor or outdoor use | Indoor |
| Power Source | Battery |
| Weight | 89.90g |
