Kantech P325XSF card reader access device, Silver
About this product
Please note: this is a non-returnable item (excluding faulty goods)

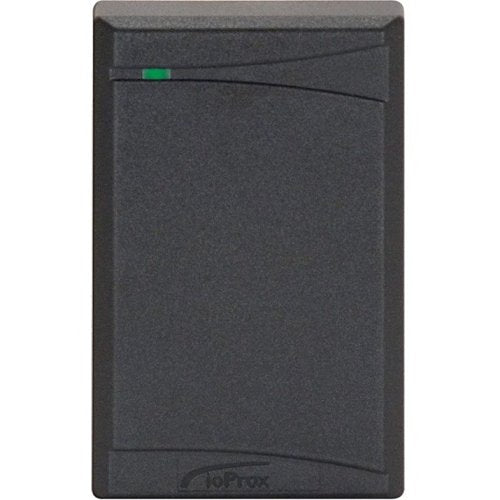

Kantech P325XSF is a card reader access device.
ioProx readers easily meet the demands of any application. They are a secure and easy-to-install solution to manage and control access all the while ensuring the safety of people and property. Attractive, compact, weatherized, and vandal-resistant, these readers are suitable for installation in a variety of environments.
Compatible with dual-encoded 26-bit Wiegand and Kantech Extended Secure Format (XSF) proximity cards, these readers seamlessly integrate with access control systems including Kantech door controllers, Kantech Telephone Entry System (KTES) and EntraPass software. ioProx cards and tags feature proven, reliable technology that seamlessly integrates with ioProx readers. Cards are available in a variety of shapes/ materials and can be attached to a key ring, badge clip or lanyard.
Disk shaped prox tags are also available and can be attached to any non-metallic surface. ioProx cards are dual encoded with both 26-bit Wiegand and XSF and are compatible with ioProx readers.
Key features
- Compatible with dual-encoded 26-bit Wiegand and Kantech Extended Secure Format (XSF) proximity cards
- Digital Signal Processing (DSP) ensures quick and reliable card reading
- Readers have weatherproof, vandal-resistant design for indoor and outdoor applications
- Some readers offer two-factor verification (PIN plus card)
- Bicolor reader LED and piezoelectric buzzer
- Cards are dual encoded with 26-bit Wiegand and XSF
- High security XSF offers over 4 billion unique code combinations
- Some cards are suitable for dye sublimation printing for photo ID badges
- Keytag is resistant to cracking/breaking
- Attach the adhesive-backed tag to any non-metallic card or device to create a proximity card
-
Download
- P325XSF — Product Manual
Specifications
General information
Technical information
Certifications
Interfaces/ports
Physical characteristics
Power description
Product information
Miscellaneous
Attributes
Specifications
| Brand Name | Kantech |
|---|---|
| Manufacturer Part Number | P325XSF |
| Product Type | Card Reader Access Device |
General information
| Application/Usage | Door |
|---|
Technical information
| Host Interface | Wiegand |
|---|---|
| Identification Method | Contactless Card (RFID/Proximity) |
| Maximum Operating Range | 205.00mm |
| Operating Range | 203.20mm |
Certifications
| RoHS compliance | Compliant |
|---|---|
| WEEE compliance | Compliant |
Interfaces/ports
| Wiegand | Yes |
|---|
Physical characteristics
| Colour | Silver |
|---|---|
| Depth | 21.30mm |
| Height | 116.80mm |
| Weight | 150.00g |
| Width | 71.10mm |
Power description
| Input Voltage | 14V DC |
|---|
Product information
| Mount Type | Gang Box Mount |
|---|
Miscellaneous
| Environmental certification | RoHS, WEEE |
|---|---|
| Environmental status | Yes |
| Indoor or outdoor use | Indoor, Outdoor |
Attributes
| Input Voltage | 14V DC |
|---|---|
| Weight | 150.00g |
