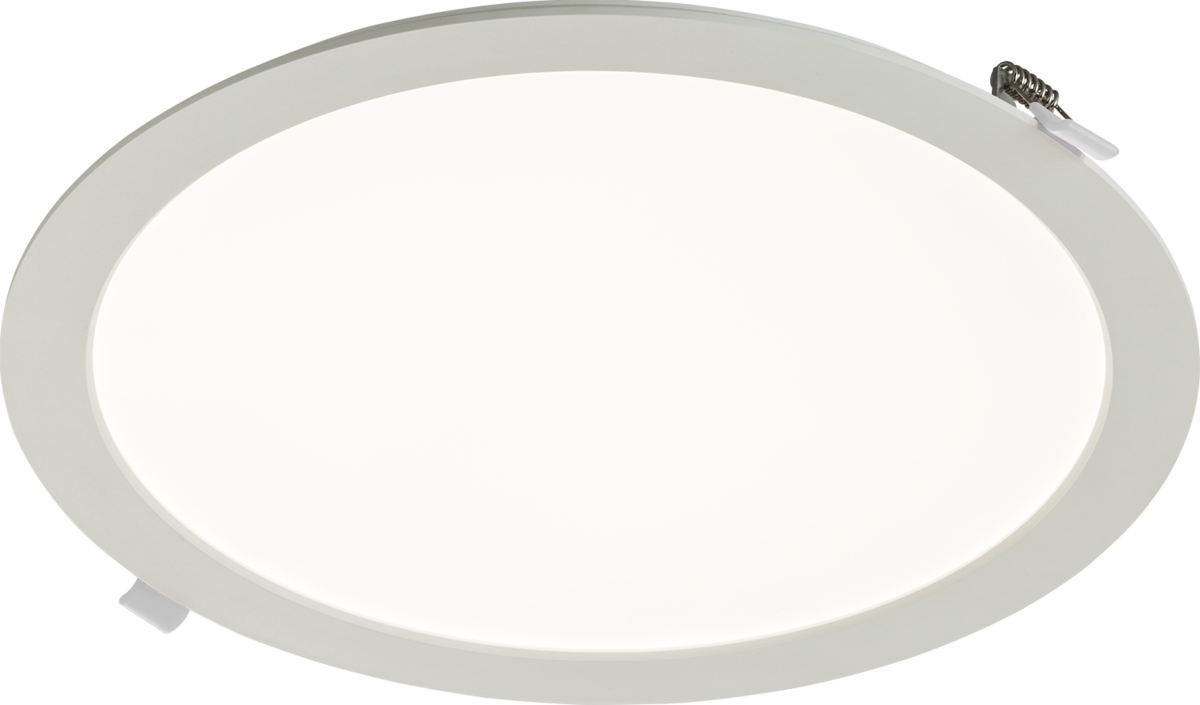

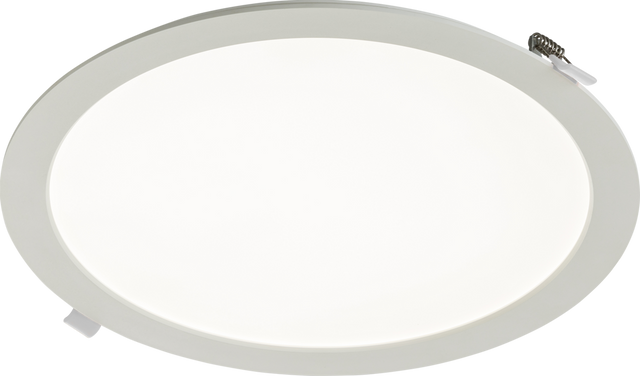

Knightsbridge: KA24CW, 24W LED Recessed Panel, Non-Dimmable, IP20, Cool White 4000K, Slim Profile
About this product
Knightsbridge's range of LED recessed round panels, with slim profile and smooth output are an excellent choice for various applications, particularly in office or corridor space. The edge-lit technology ensures that the light is evenly distributed across the panel's surface, resulting in a uniform illumination.
- Easy to install
- Slim profile panels
- Compatible emergency kit available (EMKIT2L)
- Non-dimmable
The slim design allows the fittings to be installed in shallow ceilings easily, especially useful where ceiling depth is limited.
KARA LED panels are available in 6W, 12W, 18W and 24W.
Specifications
Dimensions
Lamp
Driver
Luminaire
Photometric
Specifications
Class | II |
---|---|
Finish | White |
IP Rating | IP20 |
Construction | Polycarbonate |
Primary Voltage | 230V 50Hz |
Dimensions
Diameter | 296 mm |
---|---|
Minimum Void | 75 mm |
Recessed Depth | 24 mm |
Cut-out Diameter | 285 mm |
Lamp
L70B50 | 30,000 |
---|---|
Dimmable | No |
Beam Angle | 110 |
Lamp Included | Yes |
Lamp Technology | SMD LED |
Energy Rating (Class) post 2021 SLR | E |
Driver
Driver Type | Constant Current |
---|
Luminaire
Diffuser | Opal |
---|
Photometric
CCT | 4000 K |
---|---|
CRI | >80 |
Lumens | 2270 lm |
Wattage | 24 |
Light Colour | Cool White |
Efficacy (Light source) | 130 lm/W |
Lumens (Light source only) | 2955 lm |
24W LED Recessed Panel, Non-Dimmable features
