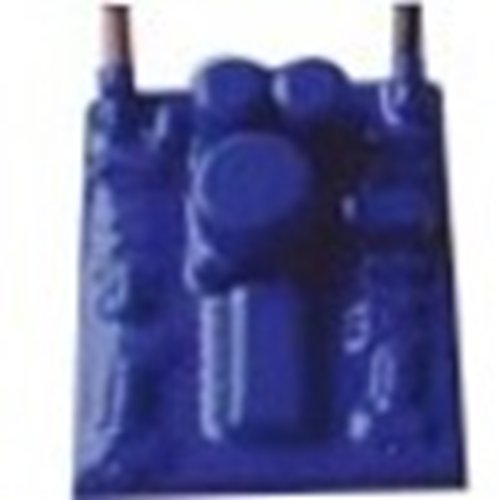

Kentec Electronics K14060 alarm control panel monitor module, Blue
About this product
Kentec Electronics K14060 is an alarm control panel monitor module.
This page covers Kentec Electronics part K14060. Everything below is recorded against that exact part number rather than against the wider range it belongs to.
The figures held against it cover rohs compliance, weee compliance, colour among others. Anything not listed we have not stated.
Ask us before you order if you need something confirmed. We will check it against the manufacturer's own documentation and tell you what it says.
Key features
- RoHS compliance: Recorded as Exempt for the Restriction of Hazardous Substances rules, which limit specified hazardous materials in electrical equipment. This is the figure the record carries for this exact part number.
- WEEE compliance: Recorded as compliant with the Waste Electrical and Electronic Equipment rules, which govern how the product is taken back and recycled at end of life. Parts in the same family can differ here, so check the code rather than the family.
- Colour: Blue. It is listed for this part number, not for the range as a whole.
- Mount Type: Surface Mount. Where your specification names a figure, compare it against this one before ordering.
- Additional Information: Normal current:5mA at 28V Fault condition current:750uA 50V Max. zone cable resistance:20 ohms Panel capacitor:47uF 50V Operating voltage:15V to 30V Terminal connections:Bootlace ferrule. Parts in the same family can differ here, so check the code rather than the family.
- Environmental status: Present on this part number. The record states it as a property of this part rather than of the wider range. This is the figure the record carries for this exact part number.
Use cases
Specify this part where the alarm control panel monitor module role is already decided and the figures listed above are the ones that have to be met. The points below are the placement-relevant entries from the same record.
- Mounting: Recorded as surface mount.
If you are matching this to an existing installation, work from the K14060 part number rather than the description.
Specifications
Technical information
Certifications
Physical characteristics
Power description
Product information
Miscellaneous
Attributes
Specifications
| Brand Name | Kentec Electronics |
|---|---|
| Manufacturer Part Number | K14060 |
| Product Type | Alarm Control Panel Monitor Module |
Technical information
| Device Supported | Control Panel |
|---|
Certifications
| RoHS compliance | Exempt |
|---|---|
| WEEE compliance | Compliant |
Physical characteristics
| Colour | Blue |
|---|
Power description
| Input Voltage | 15-30V |
|---|
Product information
| Mount Type | Surface Mount |
|---|
Miscellaneous
| Additional Information | Normal current:5mA at 28V Fault condition current:750uA 50V Max. zone cable resistance:20 ohms Panel capacitor:47uF 50V Operating voltage:15V to 30V Terminal connections:Bootlace ferrule |
|---|---|
| Compatibility | Kentec Sigma Conventional Panel Range |
| Environmental status | Yes |
Attributes
| Compatibility | Kentec Sigma Conventional Panel Range |
|---|---|
| Device Supported | Control Panel |
| Input Voltage | 15-30V |
| Additional Information | Normal current:5mA at 28V Fault condition current:750uA 50V Max. zone cable resistance:20 ohms Panel capacitor:47uF 50V Operating voltage:15V to 30V Terminal connections:Bootlace ferrule |
