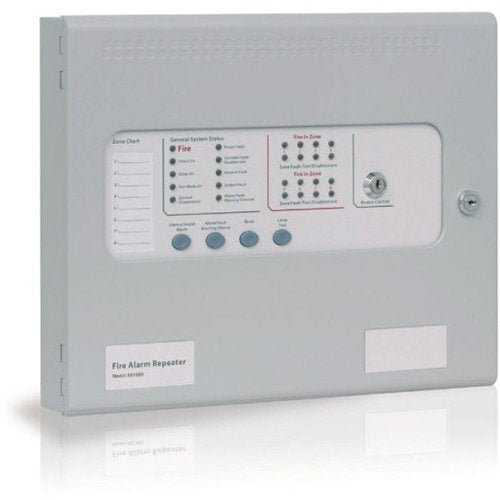

Kentec Electronics K01080M2 alarm repeater panel, White

Free Delivery
£ 358 18
(Incl. VAT)

About this product

Kentec Electronics K01080M2 is an alarm repeater panel.

The Sigma CP-R Repeater is compatible with all Sigma CP control panels which have operating software version V2.0 or above. Repeaters are available with 2, 4 or 8 zones and in mains powered (K versions) or 24V powered (E versions). Mains powered repeaters require only a two core data cable from the main control panel.

24V DC versions require an additional two cores for power either from the main panel or from another 24V DC source. A mixture of Repeaters, Ancillary boards or Sounder Boards up to a maximum of 7 of each type can be connected to a control panel and each is allocated an address from 1 to 7 using a binary coded DIL switch. The total length of the data cable from the main panel to the last repeater must not exceed 1200 metres.

Key features

  • Sigma CP-R Two wire serial connection
  • Up to 7 panels per system
  • 230V AC or 24V DC powered versions

If you are matching this to an existing installation, work from the K01080M2 part number rather than the description.

£ 358 18
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£358.18 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
Kentec Electronics
Manufacturer Part Number
K01080M2
Product Type
Network Repeater Panel
Technical information
Device Supported
Control Panel
Environmental conditions
Maximum Operating Temperature
50°C
Minimum Operating Temperature
-5°C
Physical characteristics
Colour
White
Weight
6.00kg
Power description
Input Voltage
24V DC
Product information
Mount Type
Surface Mount
Miscellaneous
Additional Information
IP Rating IP30 Finish Epoxy powder coated Colour - lid & box BS 00 A 05 grey - fine texture Supply Voltage (K models) 230V AC (+10%/-15%) Supply Voltage (E models) 20-30V AC Mains Supply
Compatibility
Sigma CP control panels
Features
LED Indicator
Attributes
Compatibility
Sigma CP control panels
Device Supported
Control Panel
Input Voltage
24V DC
Weight
6.00kg
Additional Information
IP Rating IP30 Finish Epoxy powder coated Colour - lid & box BS 00 A 05 grey - fine texture Supply Voltage (K models) 230V AC (+10%/-15%) Supply Voltage (E models) 20-30V AC Mains Supply

Specifications

Brand Name Kentec Electronics
Manufacturer Part Number K01080M2
Product Type Network Repeater Panel

Technical information

Device Supported Control Panel

Environmental conditions

Maximum Operating Temperature 50°C
Minimum Operating Temperature -5°C

Physical characteristics

Colour White
Weight 6.00kg

Power description

Input Voltage 24V DC

Product information

Mount Type Surface Mount

Miscellaneous

Additional Information IP Rating IP30 Finish Epoxy powder coated Colour - lid & box BS 00 A 05 grey - fine texture Supply Voltage (K models) 230V AC (+10%/-15%) Supply Voltage (E models) 20-30V AC Mains Supply
Compatibility Sigma CP control panels
Features LED Indicator

Attributes

Compatibility Sigma CP control panels
Device Supported Control Panel
Input Voltage 24V DC
Weight 6.00kg
Additional Information IP Rating IP30 Finish Epoxy powder coated Colour - lid & box BS 00 A 05 grey - fine texture Supply Voltage (K models) 230V AC (+10%/-15%) Supply Voltage (E models) 20-30V AC Mains Supply

Kentec Electronics K01080M2 alarm repeater panel

Kentec Electronics K01080M2 alarm repeater panel, White

Who this is for

For the installer — this is the alarm repeater panel supplied under Kentec Electronics part number K01080M2. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is an alarm repeater panel made by Kentec Electronics. The part number K01080M2 is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this alarm repeater panel is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is returnable under our standard returns terms. Faulty goods are handled separately and are never affected by a returns restriction.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact alarm repeater panel I have been quoted? Check the manufacturer part number K01080M2 against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — a document attached to this listing was checked and names this exact part number.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against K01080M2 answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.

Kentec Electronics K01080M2 alarm repeater panel
Kentec Electronics

Kentec Electronics K01080M2 alarm repeater panel, White

£358.18

Kentec Electronics K01080M2 is an alarm repeater panel.

The Sigma CP-R Repeater is compatible with all Sigma CP control panels which have operating software version V2.0 or above. Repeaters are available with 2, 4 or 8 zones and in mains powered (K versions) or 24V powered (E versions). Mains powered repeaters require only a two core data cable from the main control panel.

24V DC versions require an additional two cores for power either from the main panel or from another 24V DC source. A mixture of Repeaters, Ancillary boards or Sounder Boards up to a maximum of 7 of each type can be connected to a control panel and each is allocated an address from 1 to 7 using a binary coded DIL switch. The total length of the data cable from the main panel to the last repeater must not exceed 1200 metres.
