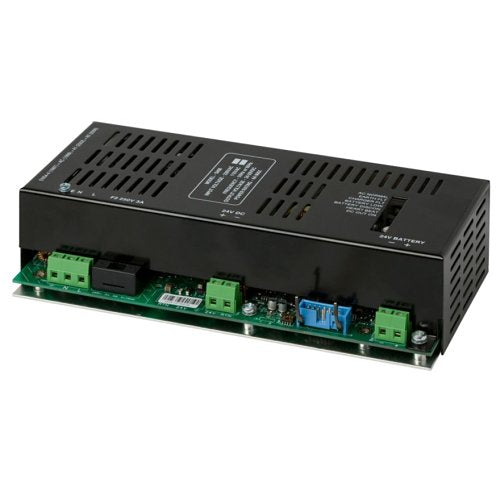

Kentec Electronics K406 power supply
About this product
Kentec Electronics K406 is a power supply.
The K407/K406 power supply/battery charger has been developed using switched mode technology to produce an efficient and lightweight power unit for a host of fire alarm applications. Suited to almost any application, the K407/K406 is designed to be a universal power source which will reduce spares stock holding and increase serviceability of systems. The comprehensive monitoring features of the K407/ K406 include true battery present detection, low battery voltage warning, battery overcharge warning, high battery impedance monitoring and low battery shut off.
These features combined with the temperature compensated charger output will increase the service life of sealed lead acid batteries.
Key features
- Complies with EN54-4
- Fully enclosed construction
- Small & lightweight
- True 2.5 Amp or 5.25 Amp continuous output
- Comprehensive fault monitoring
- Temperature compensated charger
- Wide input supply voltage
- Wide input supply voltage
- Low battery shut off to prevent deep discharge of battery
If you are matching this to an existing installation, work from the K406 part number rather than the description.
Specifications
Technical information
Certifications
Physical characteristics
Power description
Attributes
Specifications
| Brand Name | Kentec Electronics |
|---|---|
| Manufacturer Part Number | K406 |
| Product Type | Power Supply |
Technical information
| Amperage | 3.50A |
|---|---|
| Output Voltage | 24V DC |
Certifications
| Certifications & Standards | EN54-4 |
|---|---|
| RoHS compliance | Out of Scope |
| WEEE compliance | Out of Scope |
Physical characteristics
| Depth | 55.00mm |
|---|---|
| Height | 226.00mm |
| Weight | 900.00g |
| Width | 120.00mm |
Power description
| Input Voltage | 230V AC |
|---|---|
| Output Current | 5.2500A |
Attributes
| Amperage | 3.50A |
|---|---|
| Input Voltage | 230V AC |
| Output Current | 5.2500A |
| Output Voltage | 24V DC |
| Weight | 900.00g |
