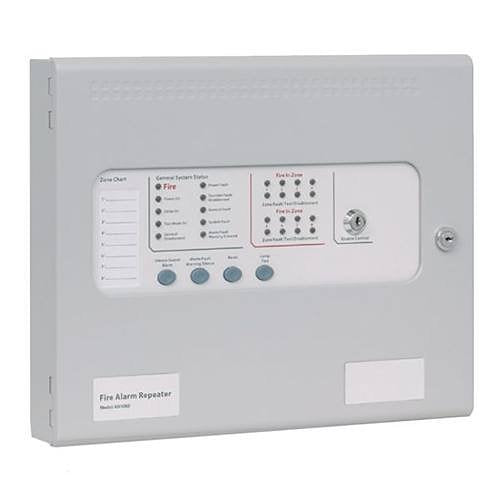

Kentec Electronics E01040L2 remote repeater panel, White
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Kentec Electronics E01040L2 is a remote repeater panel.
The Sigma CP-R Repeater is compatible with all Sigma CP control panels which have operating software version V2.0 or above. Repeaters are available with 2, 4 or 8 zones and in mains powered (K versions) or 24V powered (E versions). Mains powered repeaters require only a two core data cable from the main control panel.
24V DC versions require an additional two cores for power either from the main panel or from another 24V DC source.
Key features
- Two wire serial connection
- Up to 7 panels per system
- 230V AC or 24V DC powered versions
- Full control over main panel
- Volt free fire and fault contact outputs
If you are matching this to an existing installation, work from the E01040L2 part number rather than the description.
Specifications
Technical information
Certifications
Physical characteristics
Power description
Product information
Miscellaneous
Attributes
Specifications
| Brand Name | Kentec Electronics |
|---|---|
| Manufacturer Part Number | E01040L2 |
| Product Type | Remote Repeater Panel |
Technical information
| Device Supported | Control Panel, Fire Alarm Control Panel |
|---|
Certifications
| RoHS compliance | Exempt |
|---|---|
| WEEE compliance | Exempt |
Physical characteristics
| Colour | White |
|---|---|
| Weight | 6.00kg |
Power description
| Input Voltage | 24V DC |
|---|
Product information
| Mount Type | Surface Mount |
|---|
Miscellaneous
| Compatibility | Sigma CP control panels |
|---|---|
| Features | LED Indicator |
| Package Contents | Sigma CP-R Remote Repeater Panel LCMU |
Attributes
| Compatibility | Sigma CP control panels |
|---|---|
| Device Supported | Control Panel, Fire Alarm Control Panel |
| Input Voltage | 24V DC |
| Package Contents | Sigma CP-R Remote Repeater Panel LCMU |
| Weight | 6.00kg |
