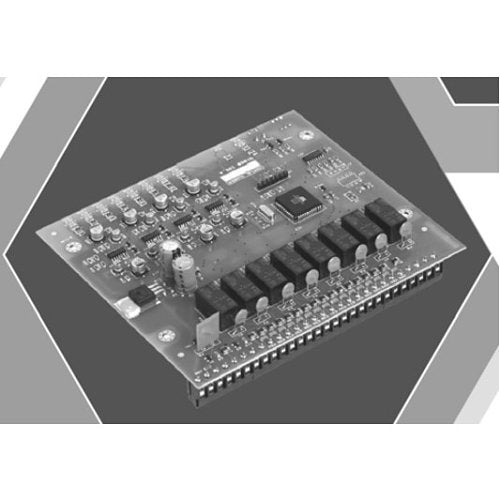

Kentec Electronics K461 sounder controller
About this product
Kentec Electronics K461 is a sounder controller.
The Sigma CP Sounder board can to provide up to 8 additional sounder outputs from Sigma CP conventional fire panels via a 2 core data bus and an additional power supply. Sounder outputs are configurable as common, zonal or two stage alarm. The Sounder board is compatible with all Sigma CP control panels with software versions Sigma242.hex onwards.
Up to 7 Sounder boards can be connected to a control panel and each is allocated an address from 1 to 7 using a binary coded DIL switch. All sounder outputs are voltage reversing and monitored for open and short circuit faults using a 10K end of line monitoring resistor. The Sigma CP control panel power supply is not suitable for powering these sounder boards.
Key features
- Two wire serial connection
- Up to 7 sounder boards per system
- 230V AC or 24V DC powered versions
- Zoned, 2-stage or common alarm
- All outputs monitored for open and short circuit faults
- Individual open and short circuit fault indicators
- Fully monitored by main control panel
- Fully monitored by main control panel
- Up to 8 outputs with 0.5A available from each
If you are matching this to an existing installation, work from the K461 part number rather than the description.
Specifications
Technical information
Certifications
Power description
Miscellaneous
Attributes
Specifications
| Brand Name | Kentec Electronics |
|---|---|
| Manufacturer Part Number | K461 |
| Product Type | Sounder Controller |
Technical information
| Device Supported | Control Panel |
|---|
Certifications
| RoHS compliance | Exempt |
|---|---|
| WEEE compliance | Compliant |
Power description
| Input Voltage | 30V DC |
|---|
Miscellaneous
| Additional Information | Two wire serial connection Up to 7 sounder boards per system 230V AC or 24V DC powered versions Zoned, 2-stage or common alarm All outputs monitored for open and short circuit faults Ind |
|---|
Attributes
| Compatibility | Kentec Sigma CP Conventional Fire Panels |
|---|---|
| Device Supported | Control Panel |
| Input Voltage | 30V DC |
| Additional Information | Two wire serial connection Up to 7 sounder boards per system 230V AC or 24V DC powered versions Zoned, 2-stage or common alarm All outputs monitored for open and short circuit faults Ind |
