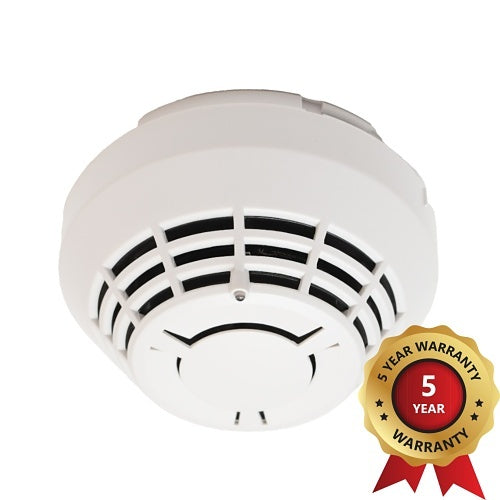

Kidde KE-DT3101W-HAB addressable heat detector, White

Please note: this is a non-returnable item (excluding faulty goods)

Kidde KE-DT3101W-HAB is an addressable heat detector.

The innovative Excellence range of intelligent addressable devices offers advanced for reliability and peace of mind. Coupled with for ease of installation and maintenance on new fire detection systems, its a perfect match for exceptional overall performance. The DT3101W-HAB is a Kidde Excellence series, signal white addressable heat detector with integrated short circuit isolation.

It supports EN54 Class A with static and rate-of-rise temperature response, as well as Class B with rate-of-rise response. It combines a low profile design with tri-colour status indication with 360° visibility. A remote indicator output is available as standard that supports a remote indicator up to 30 m away.

All detectors are individually identified by easily setting an address through 2, modern design rotary switches. The address is a directly identified number and does not require binary or hexadecimal conversions that significantly reduces the risk of incorrect addressing.Self-testing and drift compensation ensure safe operation with a contamination warnings provided when maintenance is needed. All Excellence series detectors are compatible with a standard base which makes installation planning seamless and detectors easily interchangeable.

An enhanced protocol ensures the overall integrity and error-free operation of the system. The Excellence series protocol provides like CRC error checking and multiple bus cycle codes to ensure reliability between panel and device communication. The Kidde Excellence protocol still support legacy 2000 series devices in combination with the Kidde Excellence series devices.

A comprehensive range of additional devices and accessories complement every Excellence series device. Appart from a feature rich detector line, a comprehensive range of in- and outdoor manual call points as well as a variety of I/0 modules and accessories enrich the overall Excellence system capability.

Key features

• Integrated loop short circuit isolation ensures operation during a single short circuit on the loop
• Short circuit isolation on remote output for additional device protection
• Static and rate-of-rise temperature support
• Tri-colour indicators for alarm, pre alarm, isolation, fault. ItsMe, and communications takes the guesswork out of operational status
• 360° Indicator visibility means no device alignment to ensure visibility
• New mechanical rotary addressing for easy addressing
• Event logging in the device for diagnostics purposes when needed
• All alarm levels EN54 certified
