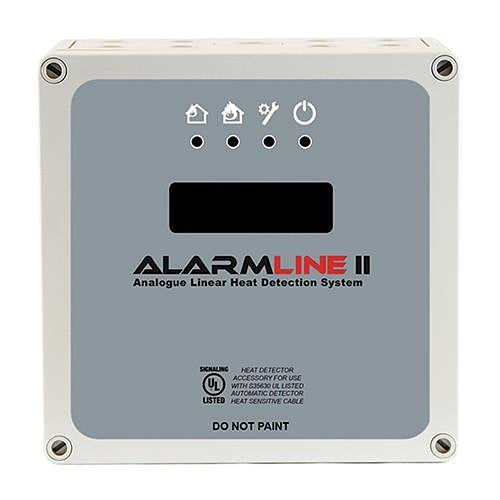

Kidde AACUSP cable control unit, Grey

Free Delivery
£ 1,725 32
(Incl. VAT)

About this product

Please note: this is a non-returnable item (excluding faulty goods)

Kidde AACUSP is a cable control unit.

Discover the Aritech AACUSP, a top-tier analogue linear heat detection (LHD) cable control unit that is self-programmable for enhanced flexibility. This unit supports a sensor cable length ranging from 30.5m to 500m and operates on a supply voltage of 20-28V DC. It features two volt-free outputs for Alarm and Pre-Alarm, each rated at 2A at 30VDC and 0.25A at 250VAC, and an opto-isolated output for fault indications rated at 20mA @ 50VDC.

Additionally, it includes an isolated input for system resets and boasts a temperature range for Alarm and Pre-Alarm from 54 to 100°C. The unit is housed in a robust polycarbonate enclosure with an IP66 ingress rating, ensuring durability and reliability. Dimensions are 182mm width, 182mm height, and 90mm depth, weighing 815g.

Enhance your safety measures with Aritech's reliable and efficient control unit.

Key features

  • Sensor cable length – Min 30.5m, Max 500m
  • Supply voltage: 20-28V DC,Current consumption: Quiescent – 70mA max, Alarm – 100mA max
  • 2 x Volt free outputs (Alarm & Pre-Alarm) rated 2A at 30VDC, 0.25A at 250VAC
  • 1 x Op to Isolated output (Fault) rated 20mA @ 50VDC
  • 1 x Isolated input (Reset) requires 20-28VDC pulse for min 5s
  • Alarm and Pre-Alarm temperature range 54 – 100 Deg C (129 – 212 Deg F)
  • 4 LED indicators: Red – Alarm, Red, Pre-Alarm, Amber – Fault, Power – Green
  • Polycarbonate enclosure, Ingress rating IP66
  • Dimensions (mm): 182w x 182h x 90d. Weight 815 g

If you are matching this to an existing installation, work from the AACUSP part number rather than the description.

£ 1,725 32
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£1,725.32 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Info about this product
Technical Details
Specifications
Brand Name
Kidde
Manufacturer Part Number
AACUSP
Product Type
Control Unit
Technical information
Maximum Operating Distance
500m
Maximum Relative Humidity
95%
Certifications
CE marking
Yes
WEEE compliance
Out of Scope
Physical characteristics
Colour
Grey
Depth
90.00mm
Height
180.00mm
Weight
815.00g
Width
182.00mm
Power description
Input Voltage
20-28V DC
Miscellaneous
Environmental certification
UL
Attributes
Input Voltage
20-28V DC
Weight
815.00g
Maximum Relative Humidity
95%
Specifications
Technical information
Certifications
Physical characteristics
Power description
Miscellaneous
Attributes

Specifications

Brand Name Kidde
Manufacturer Part Number AACUSP
Product Type Control Unit

Technical information

Maximum Operating Distance 500m
Maximum Relative Humidity 95%

Certifications

CE marking Yes
WEEE compliance Out of Scope

Physical characteristics

Colour Grey
Depth 90.00mm
Height 180.00mm
Weight 815.00g
Width 182.00mm

Power description

Input Voltage 20-28V DC

Miscellaneous

Environmental certification UL

Attributes

Input Voltage 20-28V DC
Weight 815.00g
Maximum Relative Humidity 95%

Kidde AACUSP cable control unit

Kidde AACUSP cable control unit, Grey

Who this is for

For the installer — this is the cable control unit supplied under Kidde part number AACUSP. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is a cable control unit made by Kidde. The part number AACUSP is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this cable control unit is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact cable control unit I have been quoted? Check the manufacturer part number AACUSP against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — the documentation attached to this listing was checked and names this exact part number. Documents that named only the family, or a different item, are not attached.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against AACUSP answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.
