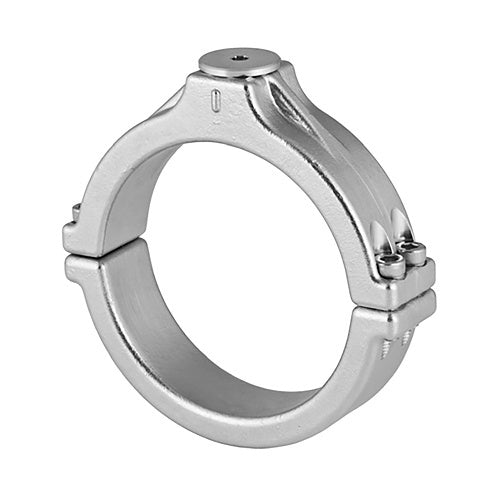

Kidde Q9033 collar, Collar
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Kidde Q9033 is a collar.
The Q9033 Mounting Arm is an approved accessory for installation of DT flame detectors. It allows easy pan and tilt adjustments for sighting of the detector. The optional Collar Attachment is used in conjunction with the Mounting Arm to add a third dimension for detector sighting by allowing it to also be rotated.
The Collar attachment is recommended for use in applications that require the detector to be panned to extreme angles. In a typical installation, the detector is pointed down. When a detector is pointed down, panning to either side of center results in some degree of rotation, the greater the pan amount, the greater the rotation.
Since the cone of vision of the X3301 is not round, but truncated on the upper half, rotation results in an unbalanced field of view. The Collar Attachment enables the detector to be adjusted level to the horizon, thereby ensuring a balanced field of view.
Key features
- Approved accessory for DT flame detectors
- Allows easy pan and tilt adjustments
- Optional Collar Attachment for added rotation
- Recommended for extreme angle applications
- Ensures balanced field of view with Collar Attachment
If you are matching this to an existing installation, work from the Q9033 part number rather than the description.
-
Download
- Q9033 — Product Manual
Specifications
Technical information
Certifications
Physical characteristics
Miscellaneous
Attributes
Specifications
| Brand Name | Kidde |
|---|---|
| Manufacturer Part Number | Q9033 |
| Product Type | Collar |
Technical information
| Device Supported | Flame Detector |
|---|
Certifications
| RoHS compliance | Out of Scope |
|---|---|
| WEEE compliance | Out of Scope |
Physical characteristics
| Form Factor | Collar |
|---|
Miscellaneous
| Compatibility | DT Series flame detectors |
|---|
Attributes
| Compatibility | DT Series flame detectors |
|---|---|
| Device Supported | Flame Detector |
