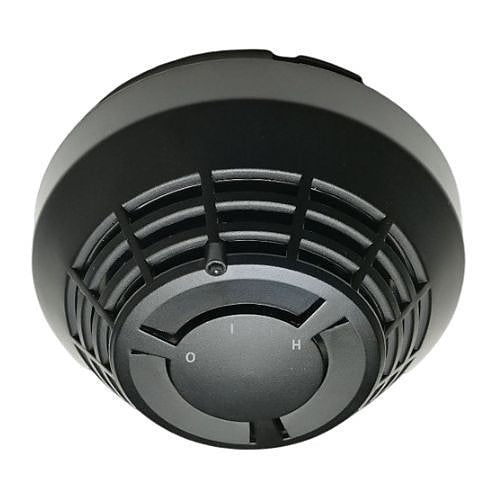

Kidde KE-DP3121B heat detector, Black
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Kidde KE-DP3121B is a heat detector.
The innovative Excellence range of intelligent addressable devices offers advanced features for reliability and peace of mind. Coupled with features for ease of installation and maintenance on new fire detection systems, it's a perfect match for exceptional overall performance. The DP3121B is a Kidde Excellence series, graphite black addressable dual optical and heat detector with integrated short circuit isolation.
It combines a low profile design with tri-colour status indication with 360° visibility. A remote indicator output is available as standard that supports a remote indicator up to 30m away. Detection reliability is ensured by combining dual optical wavelengths with multiple detection angles.
This allows for state-of-the-art particle size detection that differentiates between real sources of alarm, or nuisance sources such as dust and steam. As a temperature detector Class A static and rate-of-rise modes are supported to further widen the application footprint.
Key features
- Integrated loop short circuit isolation ensures operation during a single short circuit on the loop
- Short circuit isolation on remote output for additional device protection
- Nuisance alarm, steam & dust discrimination for peace of mind
- Static and rate-of-rise temperature support
- Tri-colour indicators for alarm, pre alarm, isolation, fault. ItsMe, and communications takes the guesswork out of operational status
- 360° Indicator visibility means no device alignment to ensure visibility
- New mechanical rotary addressing for easy addressing
- Event logging in the device for diagnostics purposes when needed
- All levels sensitivity EN54 certified
If you are matching this to an existing installation, work from the KE-DP3121B part number rather than the description.
Specifications
Technical information
Controls/indicators
Environmental conditions
Physical characteristics
Power description
Product information
Miscellaneous
Attributes
Specifications
| Brand Name | Kidde |
|---|---|
| Manufacturer Part Number | KE-DP3121B |
| Product Type | Optical/Heat Detector |
Technical information
| Maximum Coverage Area | 112.0m2 |
|---|
Controls/indicators
| Status Indicators | LED |
|---|
Environmental conditions
| Operating Relative Humidity (H-H) | 10-93% |
|---|---|
| Operating Temperature (T-T) | -10-55°C |
| Storage Temperature (T-T) | -30-75°C |
Physical characteristics
| Colour | Black |
|---|---|
| Height | 54.00mm |
| Material | Brass |
| Weight | 124.00g |
Power description
| Input Voltage | 29V DC |
|---|
Product information
| Diameter | 100.00mm |
|---|
Miscellaneous
| Compatibility | Kidde Commercial Excellence Systems |
|---|
Attributes
| Compatibility | Kidde Commercial Excellence Systems |
|---|---|
| Input Voltage | 29V DC |
| Maximum Coverage Area | 112.0m2 |
| Weight | 124.00g |
