Kidde AS367 multi-tone sounder, Red
About this product
Please note: this is a non-returnable item (excluding faulty goods)

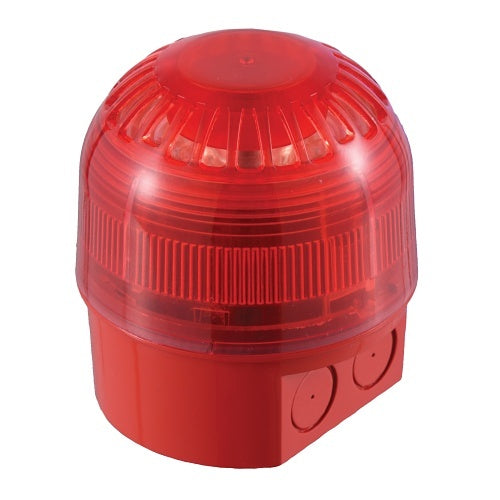

Kidde AS367 is a multi-tone sounder.
The AS367 is a general purpose sounder with visual indicator which a special base containing all wiring connections and allow for easy removal / placement. The AS367 alarm sounder with visual indicator allows faster installation and maintenance thanks to an innovative mounting base. Dispensing with the need for locking screws, these sounders use a deep base version of the TimeSave base from the 630 series detectors.
Heads are simply locked onto the base with a twist and click action, allowing fitting or removal at any time because the base is the only component that needs to be wired. As the cabling requirement is reduced, commissioning time and costs are reduced as well. The AS367 provide high sound output at a low current, thus reducing power requirements and system cost.
The AS367 sounder with visual indicator is supplied with a volume control as standard, allowing final audio adjustments to be made during installation. With a choice of 32 different tones, which are switch selectable, the required tone can be selected during installation. The mechanism for locking the sounder with visual indicator to the base, can be activated if required.
Once activated, a special tool is required to remove the sounder from the base. The AS367 sounder with visual indicator utilises a full faced translucent sounder case, giving a much larger lens area and a greater spread of light.
Key features
- High sound output
- Low current consumption
- 32-Tones user selectable
- Automatic syncronisation
- Volume control
- Anti-tamper locking mechanism
- Deep mouting base
- Wiring directly to base
- Seperate sounder and visual indicator connections
- EN54-3:2001 (Tones 1,2,3,6,7,13 only)
If you are matching this to an existing installation, work from the AS367 part number rather than the description.
Specifications
Certifications
Environmental conditions
Physical characteristics
Product information
Attributes
Specifications
| Brand Name | Kidde |
|---|---|
| Manufacturer Part Number | AS367 |
| Product Type | Beacon |
Certifications
| VdS Certified | Yes |
|---|
Environmental conditions
| Sound Emission | 106dB |
|---|
Physical characteristics
| Colour | Red |
|---|---|
| Depth | 104.00mm |
| Weight | 250.00g |
Product information
| Diameter | 100.00mm |
|---|
Attributes
| Weight | 250.00g |
|---|
