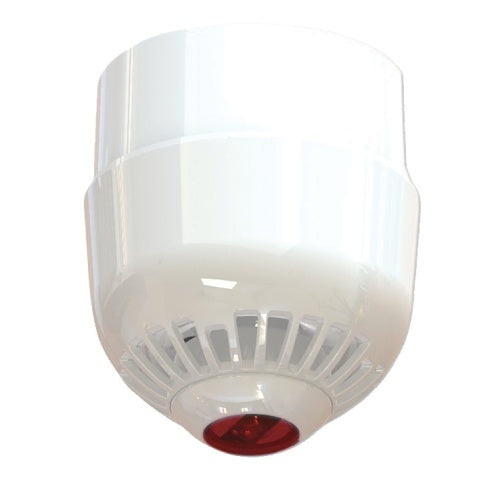

Kidde ASC2367W sounder, Red
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Kidde ASC2367W is a sounder.
The ASC2367W is deep base addressable ceiling mount room sounder / VAD for fire alarm systems running 2000 series fire protocol. Multiple tone selection and full CPR approval ensure conformance to local regulations. The VAD has a RED lens and a flash frequency of either 0.5 or 1 Hz (selectable on installation).
The 2000 series sounder / VADs operate over a 2-wire 2000 series loop and are loop powered i.e. no external power supply is required. The ASC2367W is compatible with automatic phased-start synchronisation controlled from the fire panel, and has an IP65 enclosure. Device cabling is done to the base and allows the sounder to be fitted and locked into position afterwards.
A separate earth terminal is provided in the base for connecting the screen or functional earth when required. These sounder / VADs can be put into different operating modes depending on local requirements. They provide high sound output at a low current, thus reducing power standby requirements and overall system cost.
They are supplied with high / low volume settings as standard, allowing final audio adjustments to be made during installation. The sounder is tone selectable during installation. 32 tone settings are available.
The VAD flash rate can be set during installation to 1 Hz for normal applications or, for power conservation, to 0.5 Hz, reducing the power requirements of the unit.
Key features
- Loop powered
- High sound output with low current consumption
- Multiple tone, output volume and varying flash frequency selection
- Suitable for multiple stage evacuation with up to 3 pre-set tones
- Automatic synchronisation for sounders and VADs
- IP65 Rated
- CPR Certified to EN54:3 and EN54:23
If you are matching this to an existing installation, work from the ASC2367W part number rather than the description.
Specifications
Certifications
Environmental conditions
Physical characteristics
Power description
Product information
Attributes
Specifications
| Brand Name | Kidde |
|---|---|
| Manufacturer Part Number | ASC2367W |
| Product Type | Sounder |
Certifications
| CE marking | Yes |
|---|
Environmental conditions
| Sound Emission | 8dB |
|---|
Physical characteristics
| Colour | Red |
|---|---|
| Height | 104.00mm |
| Weight | 345.00g |
Power description
| Input Voltage | 32V DC |
|---|
Product information
| Diameter | 100.00mm |
|---|---|
| Mount Type | Ceiling Mount |
Attributes
| Input Voltage | 32V DC |
|---|---|
| Weight | 345.00g |
