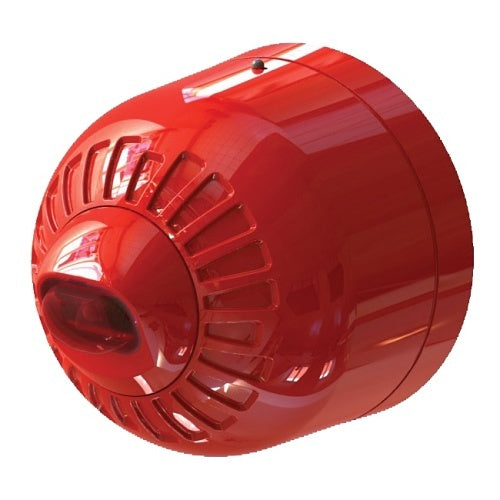

Kidde FAW350 sounder, Red
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Kidde FAW350 is a sounder.
The FAW350 is a general purpose wall mount LED beacon for fire alarm applications. It a special base containing all wiring connections and allow for easy removal/placement of the device. With an EN54-23 approved coverage pattern of W-2.4-7.5, each FAW350 may be mounted up to 2.4m high and cover a square room of 7.5 x 7.5m with a single device.
The FAx350 beacons allow faster installation and maintenance thanks to an innovative mounting base. Dispensing with the need for locking screws, these beacons use TimeSave bases from the 630 series detectors. Heads are simply locked onto the base with a twist and click action, allowing fitting or removal at any time because the base is the only component that needs to be wired.
As the cabling requirement is reduced, commissioning time and costs are naturally reduced as well. The FAx350 beacons utilise a specially designed lens giving a uniformed light output over the specified coverage area. The flash rate of the beacon may be adjusted during installation, with a selection of 0.5Hz or 1Hz.
The mechanism for locking the device to the base may be activated if required. Once activated, a special tool is required to remove the beacon from the base.
Key features
- Automatic syncronisation
- Anti-Tamper locking mechanism
- Shallow mouting base
- Wiring directly to base
- Flash rate selectable
If you are matching this to an existing installation, work from the FAW350 part number rather than the description.
Specifications
Certifications
Physical characteristics
Power description
Product information
Attributes
Specifications
| Brand Name | Kidde |
|---|---|
| Manufacturer Part Number | FAW350 |
| Product Type | Sounder |
Certifications
| CE marking | Yes |
|---|
Physical characteristics
| Colour | Red |
|---|---|
| Depth | 81.00mm |
| Weight | 215.00g |
Power description
| Input Voltage | 60V DC |
|---|
Product information
| Diameter | 100.00mm |
|---|
Attributes
| Input Voltage | 60V DC |
|---|---|
| Weight | 215.00g |
Kidde FAW350 sounder, Red
