Kidde ZR4ST-3 survey kit
About this product
Please note: this is a non-returnable item (excluding faulty goods)

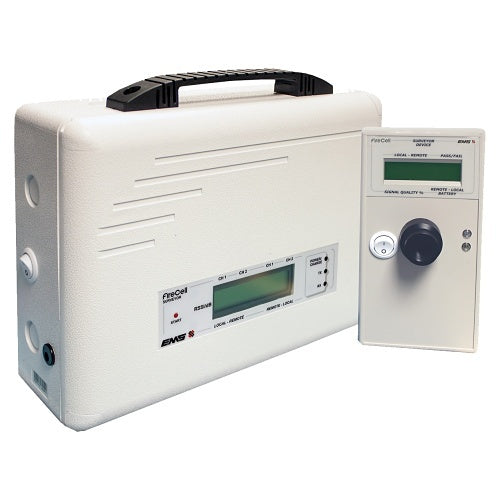

Kidde ZR4ST-3 is a survey kit.
The ZR4ST-3 is a portable radio survey kit to assist in the validation of an 868 MHz wireless fire alarm system prior to installation. A site survey is always required prior to installation for all wireless devices to ensure full system operability after installation. A typical 868 MHz fire system may consist of; Wired or wireless interface modules, Wireless fire detectors, Wireless notification devices, Wireless detector/notification device combinations, Wireless manual call points, Wireless input/output modules All of these require validation for signal strength prior to installation.Fire systems are often required in buildings where cable wiring presents a challenge because the fabric of the building, or where the interior design would be negatively affected by the use of cables.
It could also be difficult to introduce cable runs into old buildings that were not designed with a modern cable infrastructure. It is in these architecturally sensitive buildings that wireless fire detection is ideal. The ZR4ST-3 survey tool helps establish the viability of a wireless installation in such buildings by allowing a pre-installation survey to be conducted within the standard operating parameters of the system.
The ZR4ST-3 confirms the signal strength at every desired location and helps with the overall system design by providing clear go, no-go location information.
Key features
- Self-monitoring
- Proven technology
- Uses 868 MHz radio-Channel
If you are matching this to an existing installation, work from the ZR4ST-3 part number rather than the description.
Specifications
Certifications
Physical characteristics
Specifications
| Brand Name | Kidde |
|---|---|
| Manufacturer Part Number | ZR4ST-3 |
| Product Type | Survey Kit |
Certifications
| RoHS compliance | Compliant |
|---|---|
| WEEE compliance | Compliant |
Physical characteristics
| Depth | 268.00mm |
|---|---|
| Height | 120.00mm |
| Width | 227.00mm |
