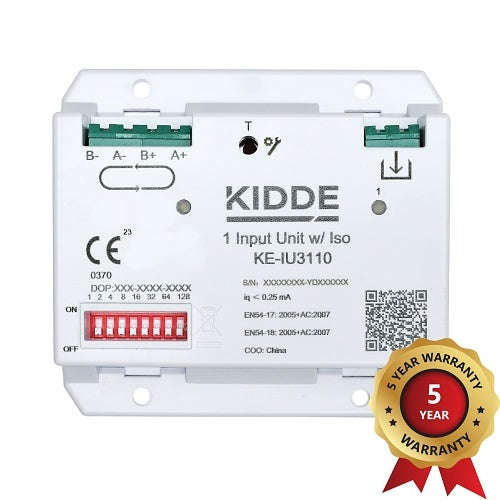

Kidde KE-IU3110 unit, White

Please note: this is a non-returnable item (excluding faulty goods)

Kidde KE-IU3110 is an unit.

The innovative Excellence series of intelligent addressable devices offers advanced for reliability and peace of mind. Coupled with for ease of installation and maintenance on new fire detection systems, its a perfect match for exceptional overall performance. The Excellence series input/output devices are designed to provide much needed flexibility to input monitoring and output switching.

These modules, combined with the powerful of a Kidde Excellence series addressable CIE, give customers versatility for diverse applications. The KE-IU3110 is a Kidde Excellence series addressable single input unit with integrated short circuit loop isolation. Powered directly from the Excellence loop, it offers an input with selectable line supervision.

The KE-IU3110 is designed to monitor any potential free contacts. Any normally open or normally closed contact may be selected to be supervised or unsupervised. Normal, open, passive, active or short circuit states on the input are reported back to the CIE where, depending on the programming, separate actions may be taken for any of these states.

The KE-IU3110 may be located anywhere on the Kidde Excellence loop where it occupies only 1 of 128 available addresses. Housed in a low profile molding, the interface is designed to clip directly onto a standard DIN rail fixing or be installed in a suitable wall mount housing. It is intended for installation inside the equipment to be switched, thereby offering savings in installation costs compared with long, auxiliary circuit wiring runs from the control panel.

The KE-IU3110 is connected to the CIE via a 2-wire communication loop that carries both power and control data. Tri-Colour LED indicators positioned on the front face of the unit provide the engineer with clear identification of the operational state of the unit, as well as the status of any input and/or output control. Additional manual test facilities on the unit allows local testing without the need for control panel intervention, saving time during installation and commissioning.Excellence series devices use an advanced digital data communications protocol with extensive error correction algorithms to ensure system reliability.

Key features

• Loop powered, saving external supply and installation cost
• Provides an addressable, input for 3rd party equipment supervision
• Fully supervised, bi-level input for pre-alarm and alarm supervision using a single input
• DIN or wall mounted for installation flexibility
• Local test for ease of validation
• Local, clear operation status indication for ease of maintenance

If you are matching this to an existing installation, work from the KE-IU3110 part number rather than the description.
