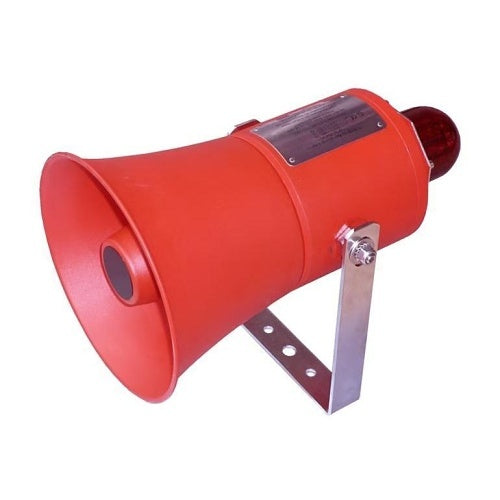

Klaxon TCB-0019 exd sounder beacon
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Klaxon TCB-0019 is an exd sounder beacon.
The EXD Beacon range has been approved for use in potentially explosive atmospheres and very harsh environmental condition These beacons have a choice of two types of light source either Xenon (strobe) with multiple flash rate and power ratings or an LED array with three status type indication options and two power ratings. The design allows for termination inside the enclosure. The units also have the ability to be fitted with a telephone initiation function and can be used as the second ring output indicator for telephones when installed in very noisy environment.
Key features
- Approved by ATEX and IECEX
- ATEX II 2G Exd IIC T4 - T6 (incorporating IIA and IIB)
- Zones 1 and 2, Zones 21 and 22
- Conforms to EN (IEC) 60079-0 EN (IEC) 60079-1
- 360 degree light output around the vertical axis
- Volume control
- Dustproof and weatherproof
If you are matching this to an existing installation, work from the TCB-0019 part number rather than the description.
Specifications
Environmental conditions
Physical characteristics
Power description
Product information
Attributes
Specifications
| Brand Name | Klaxon |
|---|---|
| Manufacturer Part Number | TCB-0019 |
Environmental conditions
| Sound Emission | 115dB |
|---|
Physical characteristics
| Lens Colour | Orange |
|---|
Power description
| Input Voltage | 12-48V DC |
|---|
Product information
| Bulb/Tube Type | LED Bulb |
|---|
Attributes
| Input Voltage | 12-48V DC |
|---|
Klaxon TCB-0019 exd sounder beacon
