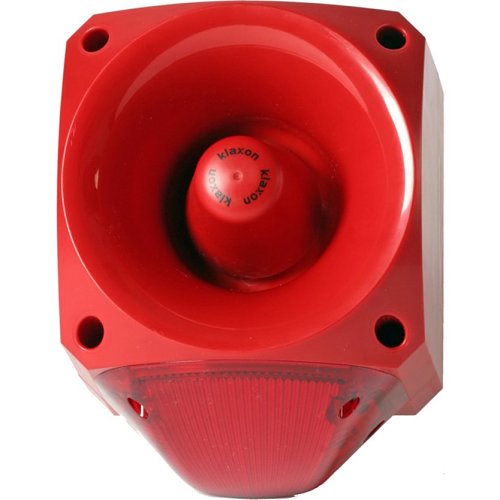

Klaxon PNC-0029 LED beacon, Red
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Klaxon PNC-0029 is an LED beacon.
The Nexus 110 is a high output, low current consumption sounder beacon designed for fire and industrial applications. Connections are made to the base during the initial wiring phase which results in faster and more reliable installation. In addition, the head is fixed by quarter turn fasteners enabling faster installation and accurate seal compression for weatherproofing.
The Nexus Sounder Beacon is available with either a high efficiency LED or xenon beacon. The combination of a powerful sounder and high output beacon ensures a very effective audio-visual signal. 105dB and 120dB units, as well as AC variants, are also available.
Key features
- High sound output: 113dB (max); 105dB (typical)
- 5J xenon or high efficiency LED beacon option
- Quarter turn fasteners for ease of installation
- First-fix, wire to base technology
- IP66 rated
- Three alarm stages
- Low in-rush current (LED only)
- Static/flashing mode (LED only)
- Volume control for greater flexibility - 20dB
If you are matching this to an existing installation, work from the PNC-0029 part number rather than the description.
Specifications
General information
Technical information
Environmental conditions
Physical characteristics
Power description
Product information
Attributes
Specifications
| Brand Name | Klaxon |
|---|---|
| Manufacturer Part Number | PNC-0029 |
| Product Type | Sounder/Strobe |
General information
| Application/Usage | Conveyor System, Crane, Fire Alarm, Heavy Machinery, Industrial, Marine, Process Control Alarm, Signaling |
|---|
Technical information
| Connectivity Technology | Wired |
|---|---|
| Light Colour | Red |
| Operating Range | -25-70°C |
Environmental conditions
| Sound Emission | 20dB |
|---|
Physical characteristics
| Colour | Red |
|---|---|
| Depth | 149.50mm |
| Height | 213.50mm |
| Lens Colour | Red |
| Weight | 1.20kg |
| Width | 166.30mm |
Power description
| Input Voltage | 60V |
|---|---|
| Power Source | DC Power |
Product information
| Bulb/Tube Type | LED Bulb |
|---|
Attributes
| Environmental status | Yes |
|---|---|
| Input Voltage | 60V |
| Power Source | DC Power |
| Weight | 1.20kg |
