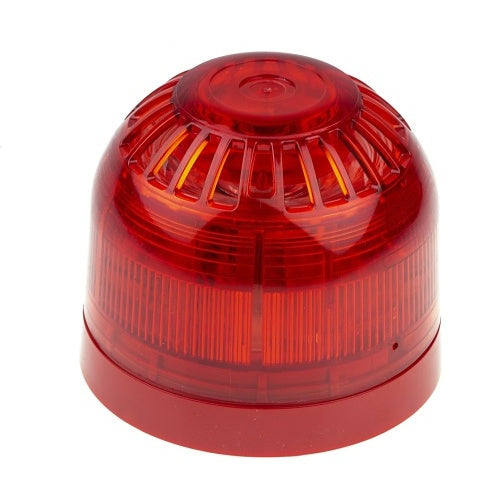

Klaxon PSC-0047 sounder beacon
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Klaxon PSC-0047 is a sounder beacon.
Electronic sounder beacon certified to EN54.With the TimeSaver base, connections are made to the base during the initial wiring phase which results in faster and more reliable installation. The sounder head ‘twists and clicks’ into the base on commissioning, avoiding the wiring and connection problems associated with traditional sounders.With a choice of 32 tones including all the major international standards, the Sonos Sounder Beacon has universal acceptance. Low current LED beacon Simple ‘First Fix’ installation Weatherproof to IP65 (deep base units) Choice of lens colours Tone and volume can be preset or adjusted off-base - 20dB simultaneous operation of sounder and beacon from single input (as required for fire devices)
Key features
- Audibility at 1m: Up to 106dB(A)
- Tones: 32
- Voltage: 17-60V DC
- Sounder Current: 9 - 50mA
- IP Rating: IP65(deep base) IP21 (shallow base)
- Operating Temp: -25ºC to +70ºC
- Construction: Flame Retardant Polycarbonate
- Cable Entries: Deep Base: 2 x 20mm cable glands
- Weight: 0.22kg (shallow base) 0.25kg (deep base)
- Compliance: EN54 3 Type A (shallow base) EN54 3 Type B (deep base)
If you are matching this to an existing installation, work from the PSC-0047 part number rather than the description.
Specifications
Certifications
Specifications
| Brand Name | Klaxon |
|---|---|
| Manufacturer Part Number | PSC-0047 |
| Product Type | Sounder Strobe |
Certifications
| RoHS compliance | Compliant |
|---|---|
| WEEE compliance | Compliant |
