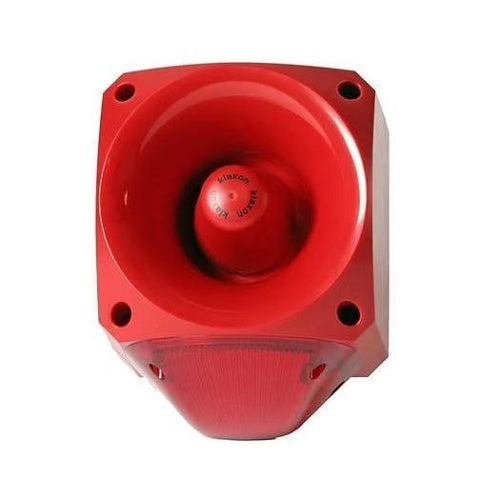

Klaxon PNC-0047 sounder strobe
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Klaxon PNC-0047 is a sounder strobe.
High output sounder beacons certified to EN54. Connections are made to the base during the initial wiring phase which results in faster and more reliable installation. In addition, the head is fixed by quarter turn fasteners avoiding the need to screw up four individual screws thus enabling faster installation and accurate seal compression for weatherproofing.
The Nexus Sounder Beacon is available with a high efficiency LED or high output xenon beacon. The combination of a powerful sounder and high output beacon ensures a very effective audio-visual signal. 110dB and 120dB units, as well as AC variants, are also available.
Key features
- 5J xenon or high efficiency LED beacon option
- Quarter turn fasteners for ease of installation
- First-fix, wire to base technology
- IP66 rated
- Three alarm stages
- Low in-rush current (LED only)
- Static/flashing mode (LED only)
- Volume control for greater flexibility - 20dB
- 64 tones
If you are matching this to an existing installation, work from the PNC-0047 part number rather than the description.
-
Download
- PNC-0047 — Product Manual
Specifications
Physical characteristics
Power description
Attributes
Specifications
| Brand Name | Klaxon |
|---|---|
| Manufacturer Part Number | PNC-0047 |
Physical characteristics
| Lens Colour | Blue |
|---|
Power description
| Input Voltage | 10-60V DC |
|---|
Attributes
| Input Voltage | 10-60V DC |
|---|
