Knight Fire & Security P02 alu keyswitch, Silver

£ 32 54
(Incl. VAT)

About this product

Please note: this is a non-returnable item (excluding faulty goods)

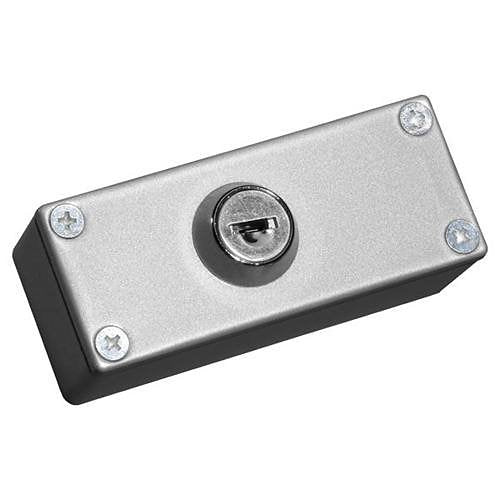

Knight Fire & Security P02 is an alu keyswitch from the P0 range.

P02 is a DPDT keyswitch made of aluminium. Both poles switch simultaneously when the key is turned, latching in place until turned back, with the key removable in either position. Two keys are supplied with each unit, with additional key blanks available for purchase under code POKEY.

Pole wiring is via PCB-mounted wire-clamping terminal blocks, with two additional terminals functioning as the lid removal tamper. This unit is supplied keyed alike – all locks/keys are identical across multiple units. See code P01 for a keys-differ variant where all locks/keys are unique across multiple units.

Key features

  • 8-Terminal (6x Switch, 2x Tamper)
  • Microswitch Tamper
  • DPDT Operation
  • Keyed Alike
  • Made in UK
  • Environmental Class II

If you are matching this to an existing installation, work from the P02 part number rather than the description.

£ 32 54
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£32.54 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
Knight Fire & Security
Manufacturer Part Number
P02
Product Series
P0
Product Type
Key Switch
General information
Application/Usage
Secure Switching
Technical information
Connectivity Technology
Wired
Certifications
ATEX Compliant
No
CE marking
Yes
CNBOP Certified
No
Energy Star
No
INCERT Certified
No
LPCB Certified
No
NF Certified
No
NF&A2P Certified
No
SBSC Certified
No
TIA Listed
No
VdS Certified
No
Physical characteristics
Colour
Silver
Height
30.00mm
Material
Aluminium
Width
338.00mm
Power description
Input Voltage
250V AC
Product information
Contact Type
DPDT (Double Pole Double Throw), Form C (SPDT)
Mount Type
Surface Mount
Miscellaneous
Environmental certification
Environmental Class II (Indoor Uncontrolled)
Attributes
Contact Type
DPDT (Double Pole Double Throw), Form C (SPDT)
Indoor or outdoor use
Indoor
Input Voltage
250V AC

Specifications

Brand Name Knight Fire & Security
Manufacturer Part Number P02
Product Series P0
Product Type Key Switch

General information

Application/Usage Secure Switching

Technical information

Connectivity Technology Wired

Certifications

ATEX Compliant No
CE marking Yes
CNBOP Certified No
Energy Star No
INCERT Certified No
LPCB Certified No
NF Certified No
NF&A2P Certified No
SBSC Certified No
TIA Listed No
VdS Certified No

Physical characteristics

Colour Silver
Height 30.00mm
Material Aluminium
Width 338.00mm

Power description

Input Voltage 250V AC

Product information

Contact Type DPDT (Double Pole Double Throw), Form C (SPDT)
Mount Type Surface Mount

Miscellaneous

Environmental certification Environmental Class II (Indoor Uncontrolled)

Attributes

Contact Type DPDT (Double Pole Double Throw), Form C (SPDT)
Indoor or outdoor use Indoor
Input Voltage 250V AC

Knight Fire & Security P02 alu keyswitch

Knight Fire & Security P02 alu keyswitch, Silver

Who this is for

For the installer — this is the alu keyswitch supplied under Knight Fire & Security part number P02. Specify it by that part number.

The entries in the specification table are the ones held against this part number.

In plain English: this is an alu keyswitch made by Knight Fire & Security. The part number P02 is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this alu keyswitch is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact alu keyswitch I have been quoted? Check the manufacturer part number P02 against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Documentation is attached to this listing, but the check did not confirm that it names this exact part number. It is attached as the supplier's document for this row, and no claim on this page rests on it.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against P02 answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.
