Knight Fire & Security J310 conduit junction box, White
About this product
Knight Fire & Security J310 is a conduit junction box from the J range.

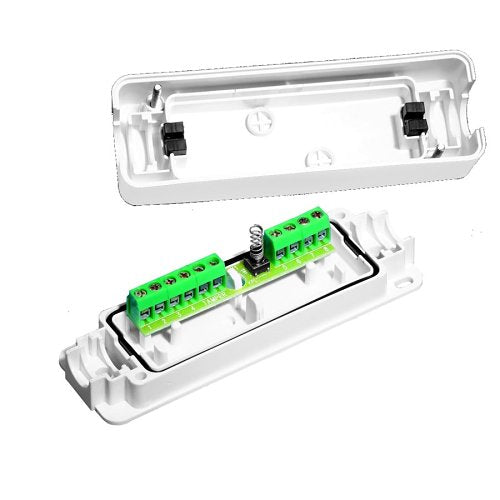

A 10-way conduit junction box with two wiring points reserved for the lid tamper (8+2). All wiring points are PCB-mounted wire clamping terminal blocks for quick and easy connections. The tamper is microswitch/spring based and detects removal of the unit lid.
A sealing gasket on the lid and soft blocks on the cable entry points ensure a good weatherproof seal.
Key features
- Weatherproof
- PCB Terminals
- Microswitch Tamper
- Made in UK
- Environmental Class III
- Comes in white colour for a trendy and eye-catching look
- Comes in white colour for a trendy and eye-catching look
If you are matching this to an existing installation, work from the J310 part number rather than the description.
-
Download
- J310 — Product Manual
Specifications
General information
Certifications
Physical characteristics
Product information
Miscellaneous
Specifications
| Brand Name | Knight Fire & Security |
|---|---|
| Manufacturer Part Number | J310 |
| Product Series | J |
| Product Type | Cabinet/Enclosure |
General information
| Application/Usage | Outdoor Wiring |
|---|
Certifications
| ATEX Compliant | No |
|---|---|
| CE marking | Yes |
| CNBOP Certified | No |
| Energy Star | No |
| INCERT Certified | No |
| LPCB Certified | No |
| NF Certified | No |
| NF&A2P Certified | No |
| SBSC Certified | No |
| TIA Listed | No |
| VdS Certified | No |
Physical characteristics
| Colour | White |
|---|---|
| Depth | 115.00mm |
| Height | 26.00mm |
| Material | Plastic |
| Width | 37.00mm |
Product information
| Mount Type | Surface Mount |
|---|
Miscellaneous
| Environmental certification | Environmental Class III (Outdoor Sheltered) |
|---|
