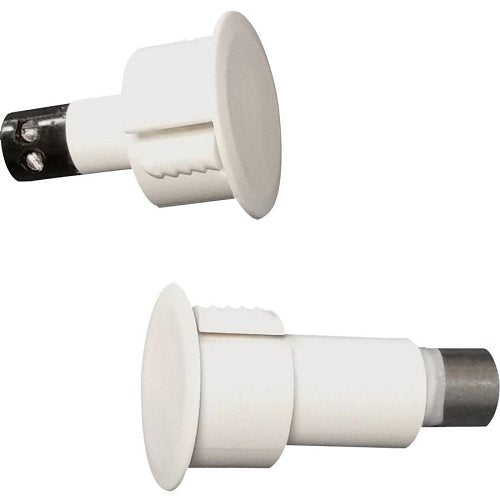

Knight Fire & Security AR02 flush contact, White

£ 6 54
(Incl. VAT)

About this product

Knight Fire & Security AR02 is a flush contact from the AR range.

A 2-terminal contact suitable for Grade 1 installations. AR02 is designed for use on frames made from steel or other ferrous materials, where other contacts may struggle to switch reliably. It may also be used in timber or non-ferrous frames, with a significantly increased operating gap.

The barrel of this contact features a ribbed design, allowing for a locking push-fit installation.

Key features

  • 2-Terminal
  • For Steel/Ferrous Frames
  • 20mm Barrel
  • Round Plate
  • Use in non-ferrous/timber frames OK
  • Made in UK
  • Environmental Class II

If you are matching this to an existing installation, work from the AR02 part number rather than the description.

£ 6 54
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£6.54 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
Knight Fire & Security
Manufacturer Part Number
AR02
Product Series
AR
Product Type
Flush Contact
General information
Application/Usage
Door, Window
Technical information
Connectivity Technology
Wired
Standard Gap
24.00mm
Certifications
ATEX Compliant
No
CE marking
Yes
CNBOP Certified
No
Energy Star
No
INCERT Certified
No
LPCB Certified
No
NF Certified
No
NF&A2P Certified
No
RoHS compliance
Compliant
SBSC Certified
No
Security Grade
Grade 1
TIA Listed
No
VdS Certified
No
WEEE compliance
Compliant
Physical characteristics
Colour
White
Material
Plastic
Power description
Input Current
0A
Input Voltage
100V AC, DC
Product information
Contact Type
Form A (SPST-NO)
Diameter
19.00mm
Mount Type
Flush Mount
Miscellaneous
Environmental certification
Environmental Class II (Indoor Uncontrolled)
Attributes
Contact Type
Form A (SPST-NO)
Indoor or outdoor use
Indoor
Input Voltage
100V AC, DC
Input Current
0A

Specifications

Brand Name Knight Fire & Security
Manufacturer Part Number AR02
Product Series AR
Product Type Flush Contact

General information

Application/Usage Door, Window

Technical information

Connectivity Technology Wired
Standard Gap 24.00mm

Certifications

ATEX Compliant No
CE marking Yes
CNBOP Certified No
Energy Star No
INCERT Certified No
LPCB Certified No
NF Certified No
NF&A2P Certified No
RoHS compliance Compliant
SBSC Certified No
Security Grade Grade 1
TIA Listed No
VdS Certified No
WEEE compliance Compliant

Physical characteristics

Colour White
Material Plastic

Power description

Input Current 0A
Input Voltage 100V AC, DC

Product information

Contact Type Form A (SPST-NO)
Diameter 19.00mm
Mount Type Flush Mount

Miscellaneous

Environmental certification Environmental Class II (Indoor Uncontrolled)

Attributes

Contact Type Form A (SPST-NO)
Indoor or outdoor use Indoor
Input Voltage 100V AC, DC
Input Current 0A

Knight Fire & Security AR02 flush contact

Knight Fire & Security AR02 flush contact, White

Who this is for

For the installer — this is the flush contact supplied under Knight Fire & Security part number AR02. Specify it by that part number.

The entries in the specification table are the ones held against this part number.

In plain English: this is a flush contact made by Knight Fire & Security. The part number AR02 is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this flush contact is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is returnable under our standard returns terms. Faulty goods are handled separately and are never affected by a returns restriction.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact flush contact I have been quoted? Check the manufacturer part number AR02 against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — the documentation attached to this listing was checked and names this exact part number. Documents that named only the family, or a different item, are not attached.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against AR02 answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.

Knight Fire & Security AR02 flush contact
Knight Fire & Security

Knight Fire & Security AR02 flush contact, White

£6.54

Knight Fire & Security AR02 is a flush contact from the AR range.

A 2-terminal contact suitable for Grade 1 installations. AR02 is designed for use on frames made from steel or other ferrous materials, where other contacts may struggle to switch reliably. It may also be used in timber or non-ferrous frames, with a significantly increased operating gap.

The barrel of this contact features a ribbed design, allowing for a locking push-fit installation.

Key features

If you are matching this to an existing installation, work from the AR02 part number rather than the description.
