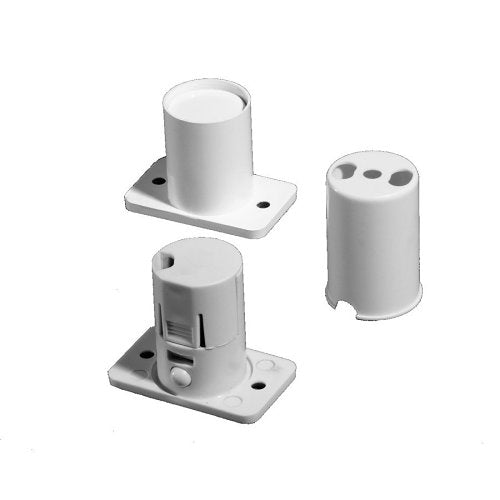

Knight Fire & Security XA41MULTI flush contact, White
About this product
Knight Fire & Security XA41MULTI is a flush contact from the XA range.
A Grade 3 contact, ideal for double door/shared zone use. In addition to a sprung microswitch that detects removal from the fitting recess, this sensor also features magnetic interference detection. XA41MULTI includes various resistors on swappable modules, offering the following configurations:
1k/1k
2k2/2k2
2k2/4k7
2k2/6k8
4k1/4k1 (Guardall 8k2)
4k7/4k7
4k7/6k8
5k6/5k6
10k/10k
A no-resistor/dry configuration is also available for 4-wire installations where resistors are not needed. Along with fitting screws, XA41MULTI is supplied with a contact sheath, useful for installations where the fitting recesses have been drilled slightly wider than 20mm.
Key features
- 4-Terminal
- Configurable Resistor Modules
- Magnetic Interference Detection
- Microswitch Tamper
- 20mm Barrel
- Shared Zone Wiring
- Made in UK
- Environmental Class II
- Note: Add suffix B for Brown
- Operation Gap : 14mm Approx
If you are matching this to an existing installation, work from the XA41MULTI part number rather than the description.
-
Download
- XA41MULTI — Product Manual
Specifications
General information
Technical information
Certifications
Physical characteristics
Power description
Product information
Miscellaneous
Attributes
Specifications
| Brand Name | Knight Fire & Security |
|---|---|
| Manufacturer Part Number | XA41MULTI |
| Product Series | XA |
| Product Type | Flush Contact |
General information
| Application/Usage | Door, Window |
|---|
Technical information
| Connectivity Technology | Wired |
|---|---|
| Standard Gap | 14.00mm |
Certifications
| ATEX Compliant | No |
|---|---|
| CE marking | Yes |
| CNBOP Certified | No |
| Energy Star | No |
| INCERT Certified | No |
| LPCB Certified | No |
| NF Certified | No |
| NF&A2P Certified | No |
| SBSC Certified | No |
| Security Grade | Grade 3 |
| TIA Listed | No |
| VdS Certified | No |
Physical characteristics
| Colour | White |
|---|---|
| Contact Material | Rhodium |
| Depth | 30.00mm |
| Material | Plastic |
Power description
| Input Current | 500mA |
|---|---|
| Input Voltage | 100V DC, 120V AC, 15V DC |
Product information
| Contact Type | Form A (SPST-NO) |
|---|---|
| Diameter | 20.00mm |
| Mount Type | Flush Mount |
Miscellaneous
| Environmental certification | Environmental Class II (Indoor Uncontrolled) |
|---|---|
| Indoor or outdoor use | Indoor |
| Package Contents | XA41MULTI Magnetic Contact Resistors |
Attributes
| Contact Type | Form A (SPST-NO) |
|---|---|
| Input Voltage | 100V DC, 120V AC, 15V DC |
| Package Contents | XA41MULTI Magnetic Contact Resistors |
| Input Current | 500mA |
