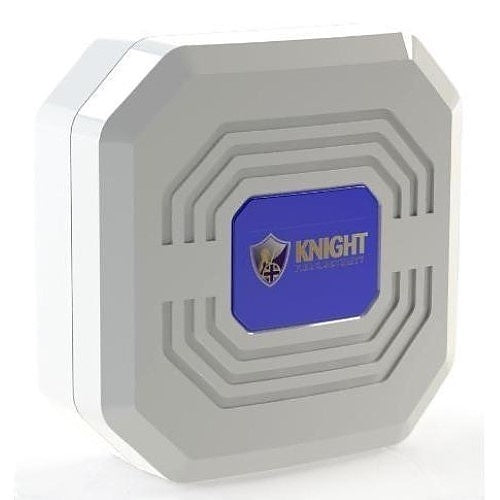

Knight Fire & Security OCT40S internal hilo sounder, White

£ 25 50
(Incl. VAT)

About this product

Knight Fire & Security OCT40S is an internal hilo sounder from the OCT range.

OCT40S is a dual-tone sounder for use in a Grade 3 installation. A volume-adjustable entry/exit tone, fixed alarm tone, and strobe light can all be independently controlled by the I&HAS. All wiring is fixed on the PCB with wire-clamping terminal blocks, and the unit includes both rear (breakaway) and lid (microswitch) tamper detection.

This unit includes the smaller, 8Ω/0.5W speaker capable of producing alarm tones at 90dBA @ 1m distance. See code OCT30S for the 16Ω variant. OCT30/40 speakers are designed to be wired to configurable outputs on the I&HAS, rather than directly to speaker terminals.

If only speaker terminals are available, the onboard PCB may be bypassed with wiring direct to the unit speaker.

Key features

  • Dual Tone with Strobe
  • Adjustable Chime Volume
  • Microswitch & Breakaway Tampers
  • Made in UK
  • Environmental Class II
  • Concealed wire clamping terminals

If you are matching this to an existing installation, work from the OCT40S part number rather than the description.

£ 25 50
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£25.50 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
Knight Fire & Security
Manufacturer Part Number
OCT40S
Product Series
OCT
Product Type
Internal Sounder
General information
Application/Usage
Internal Alarm
Technical information
Alarm Type
Audible
Connectivity Technology
Wired
Certifications
ATEX Compliant
No
CE marking
Yes
CNBOP Certified
No
Energy Star
No
INCERT Certified
No
LPCB Certified
No
NF Certified
No
NF&A2P Certified
No
RoHS compliance
Compliant
SBSC Certified
No
Security Grade
Grade 3
TIA Listed
No
VdS Certified
No
WEEE Compliant
Compliant
Controls/indicators
Status Indicators
LED
Environmental conditions
Sound Emission
90dB
Physical characteristics
Colour
White
Height
50.00mm
Material
Plastic
Weight
290.00g
Width
115.00mm
Power description
Input Voltage
12V DC
Power Source
DC Power
Product information
Mount Type
Surface Mount
Miscellaneous
Environmental certification
Environmental Class II (Indoor Uncontrolled)
Attributes
Indoor or outdoor use
Indoor
Input Voltage
12V DC
Power Source
DC Power
Weight
290.00g

Specifications

Brand Name Knight Fire & Security
Manufacturer Part Number OCT40S
Product Series OCT
Product Type Internal Sounder

General information

Application/Usage Internal Alarm

Technical information

Alarm Type Audible
Connectivity Technology Wired

Certifications

ATEX Compliant No
CE marking Yes
CNBOP Certified No
Energy Star No
INCERT Certified No
LPCB Certified No
NF Certified No
NF&A2P Certified No
RoHS compliance Compliant
SBSC Certified No
Security Grade Grade 3
TIA Listed No
VdS Certified No
WEEE Compliant Compliant

Controls/indicators

Status Indicators LED

Environmental conditions

Sound Emission 90dB

Physical characteristics

Colour White
Height 50.00mm
Material Plastic
Weight 290.00g
Width 115.00mm

Power description

Input Voltage 12V DC
Power Source DC Power

Product information

Mount Type Surface Mount

Miscellaneous

Environmental certification Environmental Class II (Indoor Uncontrolled)

Attributes

Indoor or outdoor use Indoor
Input Voltage 12V DC
Power Source DC Power
Weight 290.00g

Knight Fire & Security OCT40S internal hilo sounder

Knight Fire & Security OCT40S internal hilo sounder, White

Who this is for

For the installer — this is the internal hilo sounder supplied under Knight Fire & Security part number OCT40S. Specify it by that part number.

The entries in the specification table are the ones held against this part number.

In plain English: this is an internal hilo sounder made by Knight Fire & Security. The part number OCT40S is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this internal hilo sounder is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is returnable under our standard returns terms. Faulty goods are handled separately and are never affected by a returns restriction.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact internal hilo sounder I have been quoted? Check the manufacturer part number OCT40S against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — the documentation attached to this listing was checked and names this exact part number. Documents that named only the family, or a different item, are not attached.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against OCT40S answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.

Knight Fire & Security OCT40S internal hilo sounder
Knight Fire & Security

Knight Fire & Security OCT40S internal hilo sounder, White

£25.50

Knight Fire & Security OCT40S is an internal hilo sounder from the OCT range.

OCT40S is a dual-tone sounder for use in a Grade 3 installation. A volume-adjustable entry/exit tone, fixed alarm tone, and strobe light can all be independently controlled by the I&HAS. All wiring is fixed on the PCB with wire-clamping terminal blocks, and the unit includes both rear (breakaway) and lid (microswitch) tamper detection.

This unit includes the smaller, 8Ω/0.5W speaker capable of producing alarm tones at 90dBA @ 1m distance. See code OCT30S for the 16Ω variant. OCT30/40 speakers are designed to be wired to configurable outputs on the I&HAS, rather than directly to speaker terminals.

If only speaker terminals are available, the onboard PCB may be bypassed with wiring direct to the unit speaker.

Key features

If you are matching this to an existing installation, work from the OCT40S part number rather than the description.
