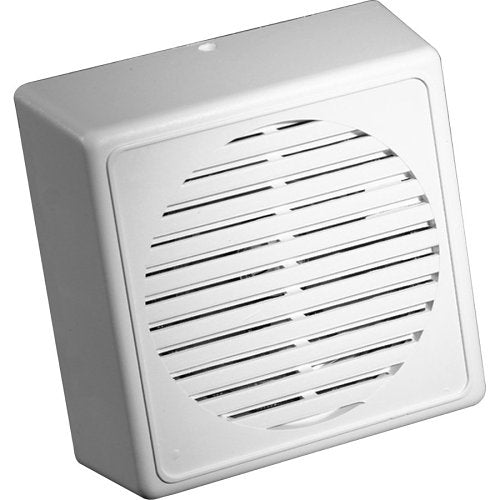

Knight Fire & Security I10 internal speaker, White

£ 6 47
(Incl. VAT)

About this product

Knight Fire & Security I10 is an internal speaker from the I range.

A basic, surface-mount internal speaker suitable for Grade 1 installations. Internals include a choc block pre-wired to the speaker for quick connections. 16 Ohm impedance, producing up to 92dB when driven at 12V.

Must be connected to a suitable speaker output on the receiving equipment – this unit will not operate with only 12V DC input like a piezo buzzer would. For Grade 3, see part code I20 – or I40 for a dual-tone sounder.

Key features

  • 16 Ohm Speaker
  • 92dB Output
  • Simple Aesthetics
  • Made in UK
  • Environmental Class II

If you are matching this to an existing installation, work from the I10 part number rather than the description.

£ 6 47
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£6.47 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
Knight Fire & Security
Manufacturer Part Number
I10
Product Series
I
Product Type
Internal Speaker
General information
Application/Usage
Internal Alarm
Technical information
Connectivity Technology
Wired
Impedance
16Ohm
Sensitivity
97dB
Audio
Maximum Frequency Response
8kHz
Minimum Frequency Response
0Hz
Certifications
ATEX Compliant
No
CE marking
Yes
CNBOP Certified
No
Energy Star
No
INCERT Certified
No
LPCB Certified
No
NF Certified
No
NF&A2P Certified
No
SBSC Certified
No
Security Grade
Grade 1
TIA Listed
No
VdS Certified
No
Environmental conditions
Sound Emission
92dB
Physical characteristics
Colour
White
Height
50.00mm
Material
Plastic
Width
120.00mm
Product information
Diameter
87.00mm
Length
120.00mm
Mount Type
Surface Mount
Miscellaneous
Environmental certification
Environmental Class II (Indoor Uncontrolled)
Attributes
Indoor or outdoor use
Indoor

Specifications

Brand Name Knight Fire & Security
Manufacturer Part Number I10
Product Series I
Product Type Internal Speaker

General information

Application/Usage Internal Alarm

Technical information

Connectivity Technology Wired
Impedance 16Ohm
Sensitivity 97dB

Audio

Maximum Frequency Response 8kHz
Minimum Frequency Response 0Hz

Certifications

ATEX Compliant No
CE marking Yes
CNBOP Certified No
Energy Star No
INCERT Certified No
LPCB Certified No
NF Certified No
NF&A2P Certified No
SBSC Certified No
Security Grade Grade 1
TIA Listed No
VdS Certified No

Environmental conditions

Sound Emission 92dB

Physical characteristics

Colour White
Height 50.00mm
Material Plastic
Width 120.00mm

Product information

Diameter 87.00mm
Length 120.00mm
Mount Type Surface Mount

Miscellaneous

Environmental certification Environmental Class II (Indoor Uncontrolled)

Attributes

Indoor or outdoor use Indoor

Knight Fire & Security I10 internal speaker

Knight Fire & Security I10 internal speaker, White

Who this is for

For the installer — this is the internal speaker supplied under Knight Fire & Security part number I10. Specify it by that part number.

The entries in the specification table are the ones held against this part number.

In plain English: this is an internal speaker made by Knight Fire & Security. The part number I10 is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this internal speaker is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is returnable under our standard returns terms. Faulty goods are handled separately and are never affected by a returns restriction.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact internal speaker I have been quoted? Check the manufacturer part number I10 against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Documentation is attached to this listing, but the check did not confirm that it names this exact part number. It is attached as the supplier's document for this row, and no claim on this page rests on it.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against I10 answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.
