Knight Fire & Security D70NO large surface contact, White
About this product
Please note: this is a non-returnable item (excluding faulty goods)

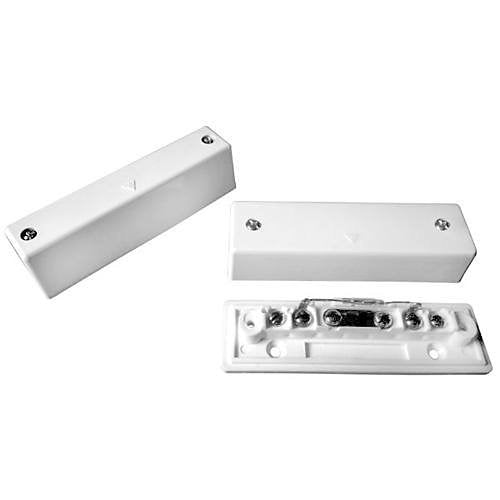

Knight Fire & Security D70NO is a large surface contact from the D range.
D70NO is a 6-screw large surface contact complete with a leaf tamper switch. Wiring points are 2x switch, 2x tamper and 2x spare. Spare wiring points allow for easy addition of EOL resistors for a supervised circuit.
This contact is Normally Open (open circuit when secure) and frequently used with access control systems. See part code D70 for the Normally Closed security variant. Fitting screws supplied.
Key features
- 6-Screw (2x Switch, 2x Tamper, 2x Spare)
- Normally Open
- Leaf Tamper
- Large Housing
- Made in UK
- Environmental Class II
If you are matching this to an existing installation, work from the D70NO part number rather than the description.
-
Download
- D70NO — Product Manual
Specifications
General information
Technical information
Certifications
Physical characteristics
Product information
Miscellaneous
Attributes
Specifications
| Brand Name | Knight Fire & Security |
|---|---|
| Manufacturer Part Number | D70NO |
| Product Series | D |
| Product Type | Surface Contact |
General information
| Application/Usage | Door, Window |
|---|
Technical information
| Connectivity Technology | Wired |
|---|---|
| Standard Gap | 40.00mm |
Certifications
| ATEX Compliant | No |
|---|---|
| CE marking | Yes |
| CNBOP Certified | No |
| Energy Star | No |
| INCERT Certified | No |
| LPCB Certified | No |
| NF Certified | No |
| NF&A2P Certified | No |
| SBSC Certified | No |
| Security Grade | Grade 2 |
| TIA Listed | No |
| VdS Certified | No |
Physical characteristics
| Colour | White |
|---|---|
| Material | Plastic |
Product information
| Contact Type | Form B (SPST-NC) |
|---|---|
| Mount Type | Surface Mount |
Miscellaneous
| Environmental certification | Environmental Class II (Indoor Uncontrolled) |
|---|---|
| Indoor or outdoor use | Indoor |
| Package Contents | 6 Screw Single Reed Normally Open Large Surface Contact +Tamper Fitting Screws |
Attributes
| Contact Type | Form B (SPST-NC) |
|---|---|
| Package Contents | 6 Screw Single Reed Normally Open Large Surface Contact +Tamper Fitting Screws |
