Knight Fire & Security YEND74 large surface contact, White
About this product

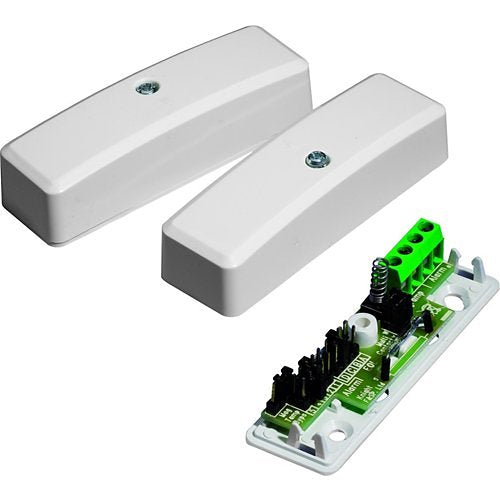

Knight Fire & Security YEND74 is a large surface contact from the YEND range.
A universal, large surface contact ideal for G3 installations. All electronics are PCB mounted, with wire-clamping terminal blocks for easy wiring. This contact can be wired in series, allowing 2+ contacts to share a zone and function as a single unit.
YEND74 features integral EOL resistors suitable for mainstream panels in the following configurations, selected by shunt links on the PCB:
- 1k/1k
- 2k2/2k2
- 2k2/4k7
- 2k2/6k8
- 4k1/4k1 (Guardall 8k2)
- 4k7/4k7
- 4k7/6k8
- 5k6/5k6
A no-resistor/dry configuration is also selectable for 4-wire installations where resistors are not required. The tamper is a sprung microswitch, detecting removal of the contact lid. A second tamper reed detects and responds to magnetic interference, meeting the requirements for Grade 3.
This reed may optionally be bypassed by shunt, reducing the product to Grade 2 level. Comes complete with 2x spacers and fitting screws.
Key features
- 4-Terminal
- Multi-Resistor
- Magnetic Interference Detection
- Microswitch Tamper
- G2/G3 Selectable
- Shared Zone Wiring
- Made in UK
- Environmental Class II
- Approx Dimensions: 78mm x 25mm x 20mm
- Terminals: 4-Terminal Block Tamper
If you are matching this to an existing installation, work from the YEND74 part number rather than the description.
-
Download
- YEND74 — Product Manual
Specifications
General information
Technical information
Certifications
Physical characteristics
Power description
Product information
Miscellaneous
Attributes
Specifications
| Brand Name | Knight Fire & Security |
|---|---|
| Manufacturer Part Number | YEND74 |
| Product Series | YEND |
| Product Type | Surface Contact |
General information
| Application/Usage | Door, Window |
|---|
Technical information
| Connectivity Technology | Wired |
|---|---|
| Standard Gap | 25.00mm |
Certifications
| ATEX Compliant | No |
|---|---|
| CE marking | Yes |
| CNBOP Certified | No |
| Energy Star | No |
| INCERT Certified | No |
| LPCB Certified | No |
| NF Certified | No |
| NF&A2P Certified | No |
| RoHS compliance | Compliant |
| SBSC Certified | No |
| Security Grade | Grade 3 |
| TIA Listed | No |
| VdS Certified | No |
| WEEE Compliant | Compliant |
Physical characteristics
| Colour | White |
|---|---|
| Contact Material | Rhodium |
| Material | Plastic |
Power description
| Input Current | 500mA |
|---|---|
| Input Voltage | 100V DC, 120V AC |
Product information
| Contact Type | Form A (SPST-NO) |
|---|---|
| Mount Type | Surface Mount |
Miscellaneous
| Environmental certification | Environmental Class II (Indoor Uncontrolled) |
|---|---|
| Indoor or outdoor use | Indoor |
| Package Contents | YEND74 Magnetic Contact Resistors |
Attributes
| Contact Type | Form A (SPST-NO) |
|---|---|
| Input Voltage | 100V DC, 120V AC |
| Package Contents | YEND74 Magnetic Contact Resistors |
| Input Current | 500mA |
