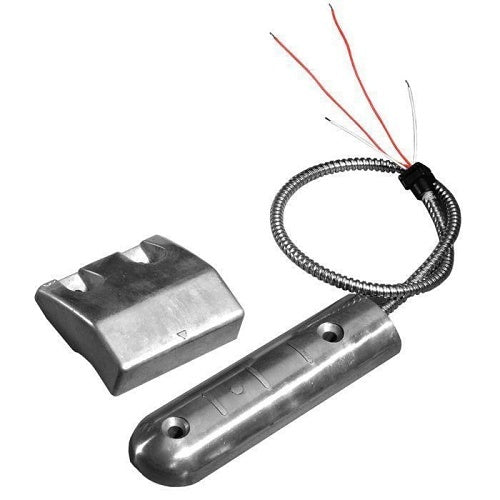

Knight Fire & Security F40 magnetic contact
About this product
Knight Fire & Security F40 is a magnetic contact.
F40 is a Heavy Duty Roller Shutter contact. The housings are manufactured from Die Cast Aluminium, with the contact sealed in with a resin. For added Security and durability, the 0.5m fly lead is encased in a Stainless Steel shroud.
Capped with a grommet for easy attachment to other equipment. This contact is Normally Open (N\O). The circuit through the contact is complete until the Magnet is moved close by.
With the Magnet in close, the circuit through the contact is broken. Op Gap 50mm.
Key features
- Heavy Duty Roller Shutter Contact
- Grommet capped for easy attachment
- Circuit completes until Magnet is close
- Circuit breaks when magnet is close
- Operating gap 50mm
If you are matching this to an existing installation, work from the F40 part number rather than the description.
Specifications
Technical information
Certifications
Product information
Attributes
Specifications
| Brand Name | Knight Fire & Security |
|---|---|
| Manufacturer Part Number | F40 |
Technical information
| Standard Gap | 50.00mm |
|---|
Certifications
| Security Grade | Grade 2 |
|---|
Product information
| Contact Type | NO (Normally Open) |
|---|
Attributes
| Contact Type | NO (Normally Open) |
|---|
