Knight Fire & Security C91 pencil flush contact
About this product
Please note: this is a non-returnable item (excluding faulty goods)

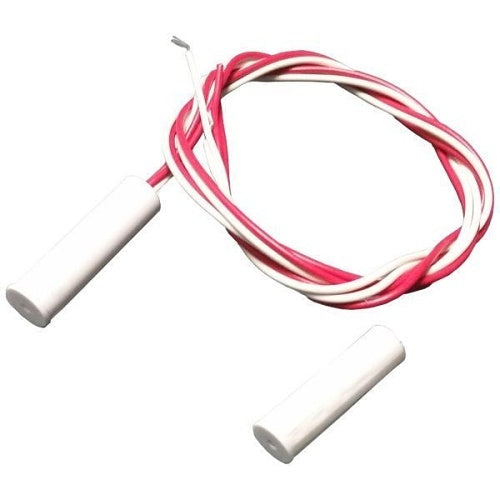

Knight Fire & Security C91 is a pencil flush contact.
This contact is Normally Open (N/O) - The circuit through the contact is complete until the magnet is moved close by. With the magnet in close proximity, the circuit through the contact is broken.Of the 4 available wires, two carry the signal from the switch while the remaining two function as a tamper loop. The C series of contacts are designed to have a small form factor and easy push fit installation.
They are ideal for use on windows or anywhere a standard 20mm recess will not work.
Key features
- Normally Open (N/O) contact configuration
- 4-wire design with 2 signal wires and 2 tamper loop wires
- Small form factor for compact installations
- Push-fit installation for ease of use
- Suitable for windows and applications where a 20mm recess is not feasible
If you are matching this to an existing installation, work from the C91 part number rather than the description.
Specifications
Certifications
Miscellaneous
Specifications
| Brand Name | Knight Fire & Security |
|---|---|
| Manufacturer Part Number | C91 |
Certifications
| Security Grade | Grade 2 |
|---|
Miscellaneous
| Indoor or outdoor use | Outdoor |
|---|
