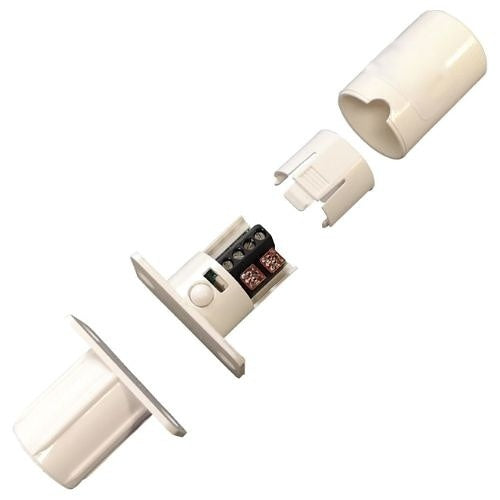

Knight Fire & Security A41MULTIBK reed flush contact
About this product
Knight Fire & Security A41MULTIBK is a reed flush contact.
A41MULTI features a variety of integral resistors, providing 2-wire EOL installation capability. The resistors will suit a wide range of the most popular panel brands such as; Honeywell, Ademco, Orisec, Scantronic, Menvier, Texecom, Pyronix, Castle, Aritech, Europlex, Gardtec, HKC, Guardall and Inner Range Control Panels. The resistors are supplied on a set of 4 modules, these are to be inserted into the PCB in order to select the desired configuration.
A no-resistor combination provides traditional 4-wire capability where desired. Wiring is completed using 4-wire clamping screw down terminals on the PCB. A microswitch tamper provides detection of removal from the fitting recess.
Along with fitting screws, A41MULTI is also supplied with a contact sheath, useful for installations where the fitting recesses have drilled a little wider than 20mm or are otherwise awkward.
Key features
- Environmental Class II – Indoor uncontrolled
- 4-Terminal
- Tamper microswitch
- Make distance 14mm
- EOL Resistors 1k, 2k2, 4k1, 4k7, 5k6, 10k
- Alarm resistors 1k, 2k2, 4k1, 4k7, 5k6, 6k8, 10k
- CONTACT: 19mm diameter, 27mm deep (22mm diameter, 31mm deep with sheath)
- MAGNET: 22mm diameter, 25mm deep
If you are matching this to an existing installation, work from the A41MULTIBK part number rather than the description.
Specifications
Specifications
| Brand Name | Knight Fire & Security |
|---|---|
| Manufacturer Part Number | A41MULTIBK |
