Knight Fire & Security D75NO surface contact, White
About this product
Please note: this is a non-returnable item (excluding faulty goods)

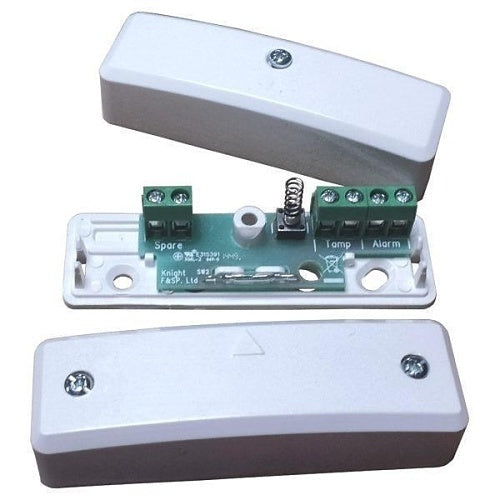

Knight Fire & Security D75NO is a surface contact from the D range.
A large surface contact ideal for G2 installations. All electronics are PCB mounted, with wire-clamping terminal blocks for easy wiring. D75NO can also accept EOL resistors if a supervised circuit is required, and a spare terminal provides options for additional wiring.
This contact is Normally Open (open circuit when secure) and frequently used with access control systems. See part code D75 for the Normally Closed security variant. Comes complete with 2x spacers and fitting screws.
Key features
- 5-Terminal (2x Switch, 2x Tamper, 1x Spare)
- Normally Open
- Microswitch Tamper
- Made in UK
- Environmental Class II
If you are matching this to an existing installation, work from the D75NO part number rather than the description.
-
Download
- D75NO — Product Manual
Specifications
General information
Technical information
Certifications
Physical characteristics
Product information
Miscellaneous
Attributes
Specifications
| Brand Name | Knight Fire & Security |
|---|---|
| Manufacturer Part Number | D75NO |
| Product Series | D |
| Product Type | Surface Contact |
General information
| Application/Usage | Door, Window |
|---|
Technical information
| Connectivity Technology | Wired |
|---|---|
| Standard Gap | 35.00mm |
Certifications
| ATEX Compliant | No |
|---|---|
| CE marking | Yes |
| CNBOP Certified | No |
| Energy Star | No |
| INCERT Certified | No |
| LPCB Certified | No |
| NF Certified | No |
| NF&A2P Certified | No |
| RoHS compliance | Compliant |
| SBSC Certified | No |
| Security Grade | Grade 2 |
| TIA Listed | No |
| VdS Certified | No |
| WEEE compliance | Out of Scope |
Physical characteristics
| Colour | White |
|---|---|
| Material | Plastic |
Product information
| Contact Type | Form B (SPST-NC) |
|---|---|
| Mount Type | Surface Mount |
Miscellaneous
| Environmental certification | Environmental Class II (Indoor Uncontrolled) |
|---|
Attributes
| Contact Type | Form B (SPST-NC) |
|---|---|
| Indoor or outdoor use | Indoor |
