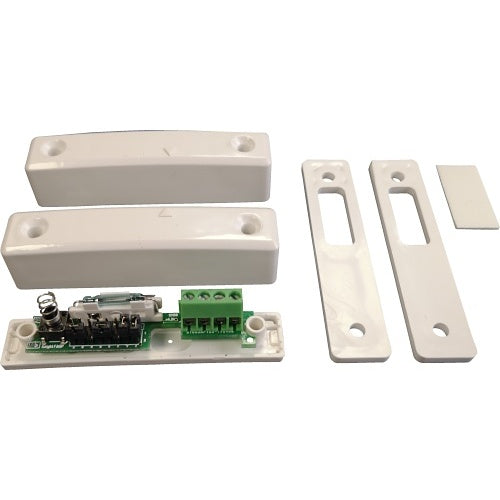

Knight Fire & Security XEND24 surface contact, White
About this product
Knight Fire & Security XEND24 is a surface contact from the XEND range.
A universal, small surface contact ideal for G3 installations. All electronics are PCB mounted, with wire-clamping terminal blocks for easy wiring. This contact can be wired in series, allowing 2+ contacts to share a zone and behave as a single unit.
XEND24 features integral EOL resistors suitable for mainstream panels in the following configurations, selected by shunt links on the PCB: 1k/1k
2k2/2k2
2k2/4k7
2k2/6k8
4k1/4k1 (Guardall 8k2)
4k7/4k7
4k7/6k8
5k6/5k6
A no-resistor/dry configuration is also selectable for 4-wire installations where resistors are not required. The tamper is a sprung microswitch, detecting removal of the contact lid. Additional onboard circuitry detects and reacts to magnetic interference, meeting the requirements of Grade 3.
Comes complete with 2x spacers and fitting screws.
Key features
- 4-Terminal
- Multi-Resistor
- Magnetic Interference Detection
- Microswitch Tamper
- Small Form Factor
- Shared Zone Wiring
- Made in UK
- Environmental Class II
If you are matching this to an existing installation, work from the XEND24 part number rather than the description.
-
Download
- XEND24 — Product Manual
Specifications
General information
Technical information
Certifications
Physical characteristics
Power description
Product information
Miscellaneous
Attributes
Specifications
| Brand Name | Knight Fire & Security |
|---|---|
| Manufacturer Part Number | XEND24 |
| Product Series | XEND |
| Product Type | Surface Contact |
General information
| Application/Usage | Door, Window |
|---|
Technical information
| Connectivity Technology | Wired |
|---|---|
| Standard Gap | 7.00mm |
Certifications
| ATEX Compliant | No |
|---|---|
| CE marking | Yes |
| Certifications & Standards | CE |
| CNBOP Certified | No |
| Energy Star | No |
| INCERT Certified | No |
| LPCB Certified | No |
| NF Certified | No |
| NF&A2P Certified | No |
| SBSC Certified | No |
| Security Grade | Grade 3 |
| TIA Listed | No |
| VdS Certified | No |
Physical characteristics
| Colour | White |
|---|---|
| Height | 14.25mm |
| Material | Plastic |
| Width | 16.50mm |
Power description
| Input Current | 500mA |
|---|---|
| Input Voltage | 1-100V DC, 125V AC |
Product information
| Contact Type | Form A (SPST-NO) |
|---|---|
| Length | 68.00mm |
| Mount Type | Surface Mount |
Miscellaneous
| Environmental certification | Environmental Class II (Indoor Uncontrolled) |
|---|
Attributes
| Contact Type | Form A (SPST-NO) |
|---|---|
| Indoor or outdoor use | Indoor |
| Input Voltage | 1-100V DC, 125V AC |
| Input Current | 500mA |
