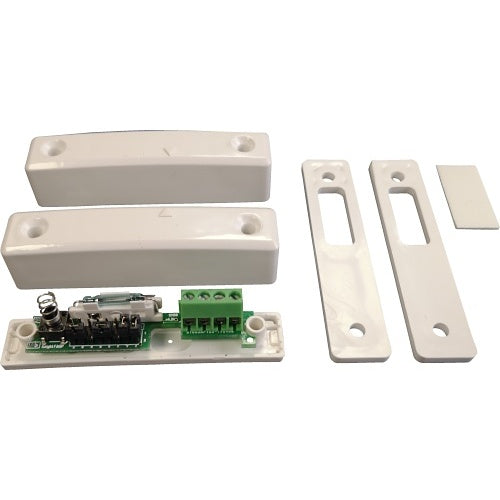

Knight Fire & Security XEND24PACOM surface contact, White
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Knight Fire & Security XEND24PACOM is a surface contact from the XEND range.
A universal, small surface contact ideal for G3 installations. All electronics are PCB mounted, with wire-clamping terminal blocks for easy wiring. This contact can be wired in series, allowing 2+ contacts to share a zone and behave as a single unit.
As the regular XEND24 does not have a built-in resistor provision for PACOM I&HAS equipment, this variant has been tailored specifically to it. The PACOM 10k/10k option as well as two others are selected by shunt links on the PCB:
- 1k/1k
- 4k7/4k7
- 10k/10k
A no-resistor/dry configuration is also selectable for 4-wire installations where resistors are not required. The tamper is a sprung microswitch, detecting removal of the contact lid. Additional onboard circuitry detects and reacts to magnetic interference, meeting the requirements of Grade 3.
Comes complete with 2x spacers and fitting screws.
Key features
- 4-Terminal
- Multi-Resistor
- Magnetic Interference Detection
- Microswitch Tamper
- Small Form Factor
- Shared Zone Wiring
- Made in UK
- Environmental Class II
If you are matching this to an existing installation, work from the XEND24PACOM part number rather than the description.
-
Download
- XEND24PACOM — Product Manual
Specifications
General information
Technical information
Certifications
Physical characteristics
Product information
Miscellaneous
Attributes
Specifications
| Brand Name | Knight Fire & Security |
|---|---|
| Manufacturer Part Number | XEND24PACOM |
| Product Series | XEND |
| Product Type | Surface Contact |
General information
| Application/Usage | Door, Window |
|---|
Technical information
| Connectivity Technology | Wired |
|---|---|
| Standard Gap | 7.00mm |
Certifications
| ATEX Compliant | No |
|---|---|
| CE marking | Yes |
| CNBOP Certified | No |
| Energy Star | No |
| INCERT Certified | No |
| LPCB Certified | No |
| NF Certified | No |
| NF&A2P Certified | No |
| RoHS compliance | Compliant |
| SBSC Certified | No |
| Security Grade | Grade 3 |
| TIA Listed | No |
| VdS Certified | No |
| WEEE Compliant | Compliant |
Physical characteristics
| Colour | White |
|---|---|
| Material | Plastic |
Product information
| Contact Type | Form A (SPST-NO) |
|---|---|
| Mount Type | Surface Mount |
Miscellaneous
| Environmental certification | Environmental Class II (Indoor Uncontrolled) |
|---|
Attributes
| Contact Type | Form A (SPST-NO) |
|---|---|
| Indoor or outdoor use | Indoor |
