MAG A1ML250 Aperta 250kg Internal Maglock
£
69
94
(Incl. VAT)
2 Years Warranty
Aperta 250kg Internal Maglock
About this product
About this product

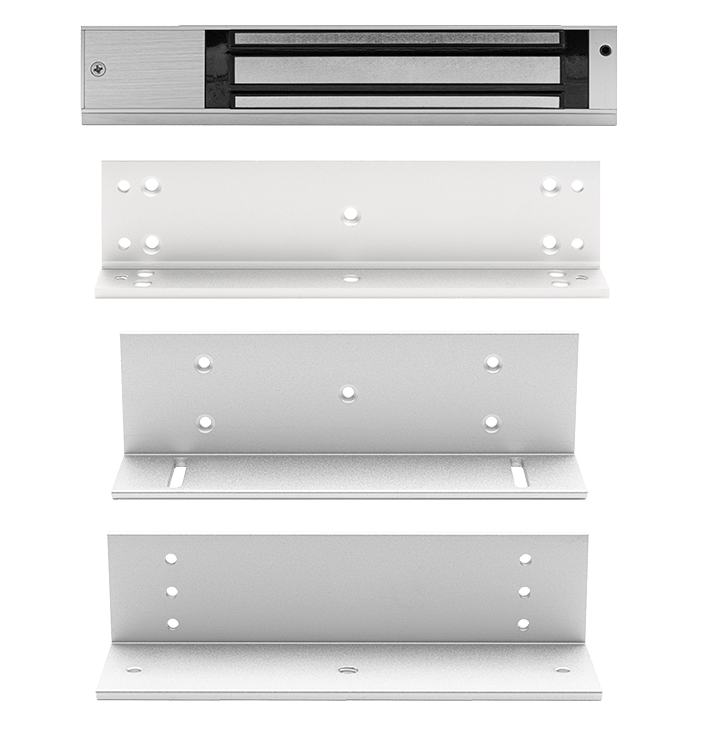

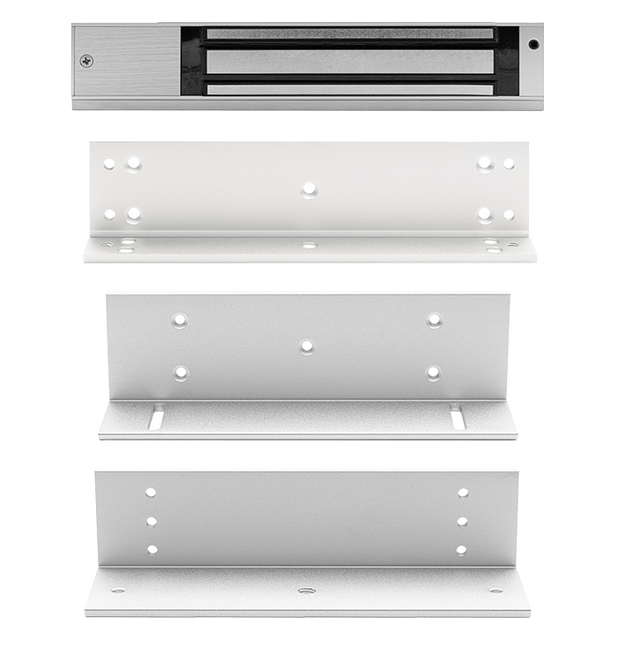

The Aperta A1ML250, from ESP's Access Control range, is an internal fail safe magnetic lock with a 250kg holding force, supplied with Z and L brackets. It runs on 12 or 24 V DC and has COM/NO/NC door contact output connections.
Key features
- 250kg maximum holding force
- Fail safe lock
- 12 & 24 V DC: 430 mA @12V, 250 mA @24V
- COM/NO/NC door contact output connections
- Z & L brackets, armature plate, fixing screws & bolts supplied
- Brushed silver aluminium alloy, 48 x 250 x 27 mm, surface mounting
Frequently asked questions
What holding force does the A1ML250 have?
250kg maximum.
Is it fail safe?
Yes, it is a fail safe lock.
What voltage does it need?
12 or 24 V DC, drawing 430 mA at 12V or 250 mA at 24V.
What is supplied with it?
Z & L brackets, an armature plate, and fixing screws and bolts.
Does it have a door status output?
It has COM/NO/NC door contact output connections.
-
Download
- A1ML250 Tech Sheet
£
69
94
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
48 x 250 x 27
Operating Voltage (V DC)
12 & 24
Finish
Brushed Silver
Power Consumption (mA)
430 @12V, 250 @24V
Maximum Holding Force (Kg)
250
Materials
Aluminium Alloy
Mounting
Surface
Warranty (Years)
2
Operating Temperature (°C)
-20 to +50
Supplied
Z & L Brackets, Armature Plate, Fixing Screws & Bolts
Lock Type
Fail safe
Door Contact Output
COM/NO/NC
Dimensions
Dimensions (mm)
48 x 250 x 27
Specifications
| Dimensions (mm) | 48 x 250 x 27 |
|---|---|
| Operating Voltage (V DC) | 12 & 24 |
| Finish | Brushed Silver |
| Power Consumption (mA) | 430 @12V, 250 @24V |
| Maximum Holding Force (Kg) | 250 |
| Materials | Aluminium Alloy |
| Mounting | Surface |
| Warranty (Years) | 2 |
| Operating Temperature (°C) | -20 to +50 |
| Supplied | Z & L Brackets, Armature Plate, Fixing Screws & Bolts |
| Lock Type | Fail safe |
| Door Contact Output | COM/NO/NC |
Dimensions
| Dimensions (mm) | 48 x 250 x 27 |
|---|
Aperta 250kg Internal Maglock features
