MAG A1ML300XT Aperta 300kg External Maglock
Free Delivery
£
138
50
(Incl. VAT)
2 Years Warranty
Aperta 300kg External Maglock
About this product
About this product
The Aperta A1ML300XT, from ESP's Access Control range, is an external 300kg holding force magnetic lock with Z and L brackets: a fail safe lock rated IP68.
Key features
- 300kg maximum holding force
- Fail safe lock
- IP68 ingress protection
- 12 & 24 V DC operation: 480 mA @12V, 290 mA @24V

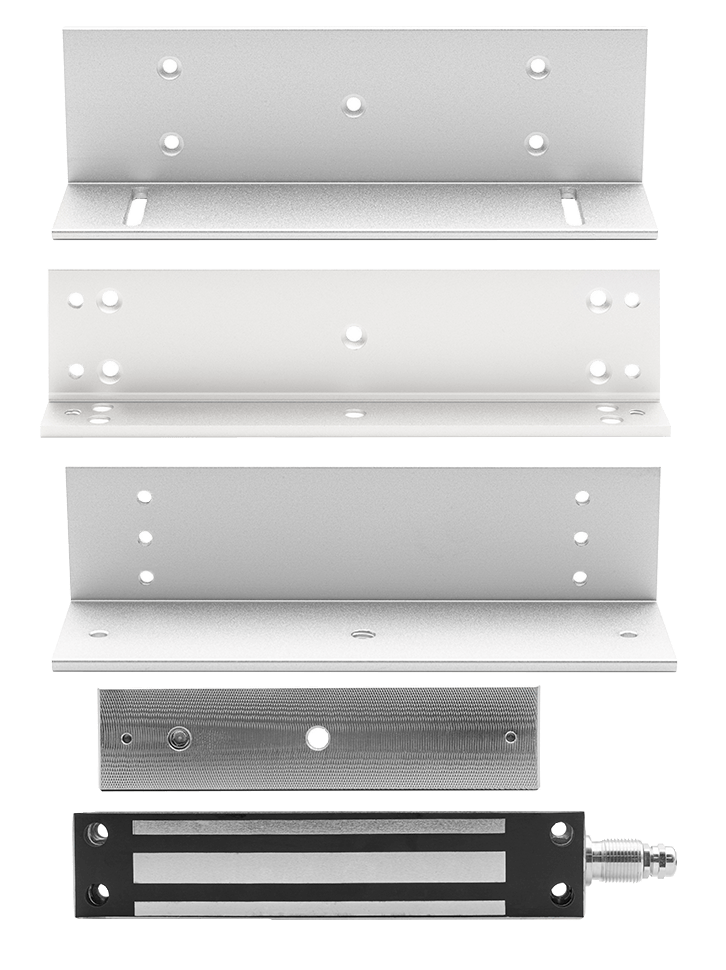

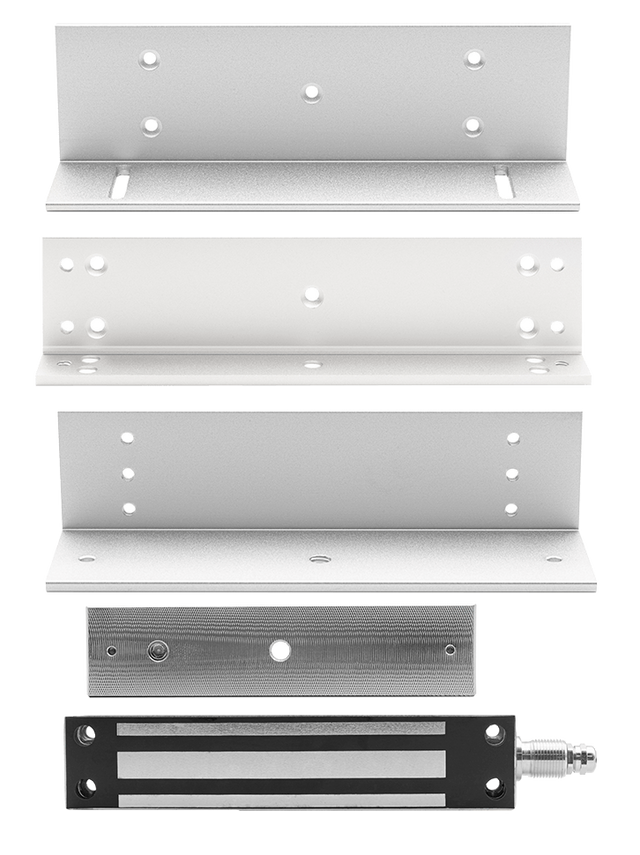

- Supplied with Z & L brackets, armature plate, fixing screws & bolts
- Brushed silver aluminium alloy, 47 x 220 x 28 mm
- Surface mounting
- Operating temperature -20 to +50°C
Frequently asked questions
What holding force does the A1ML300XT have?
300kg maximum.
Is it fail safe or fail secure?
Fail safe.
Which voltages does it run on?
12 & 24 V DC: 480 mA at 12V, 290 mA at 24V.
What IP rating does it have?
IP68.
What comes with it?
Z & L brackets, an armature plate, and fixing screws & bolts.
-
Download
- A1ML300XT Tech Sheet
£
138
50
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
47 x 220 x 28
Operating Voltage (V DC)
12 & 24
Finish
Brushed Silver
Power Consumption (mA)
480 @12V, 290 @24V
Maximum Holding Force (Kg)
300
Materials
Aluminium Alloy
Mounting
Surface
Warranty (Years)
2
Operating Temperature (°C)
-20 to +50
Supplied
Z & L Brackets, Armature Plate, Fixing Screws & Bolts
Ingress Protection
IP68
Features
Fail safe lock
Dimensions
Dimensions (mm)
47 x 220 x 28
Specifications
| Dimensions (mm) | 47 x 220 x 28 |
|---|---|
| Operating Voltage (V DC) | 12 & 24 |
| Finish | Brushed Silver |
| Power Consumption (mA) | 480 @12V, 290 @24V |
| Maximum Holding Force (Kg) | 300 |
| Materials | Aluminium Alloy |
| Mounting | Surface |
| Warranty (Years) | 2 |
| Operating Temperature (°C) | -20 to +50 |
| Supplied | Z & L Brackets, Armature Plate, Fixing Screws & Bolts |
| Ingress Protection | IP68 |
| Features | Fail safe lock |
Dimensions
| Dimensions (mm) | 47 x 220 x 28 |
|---|
Aperta 300kg External Maglock features
