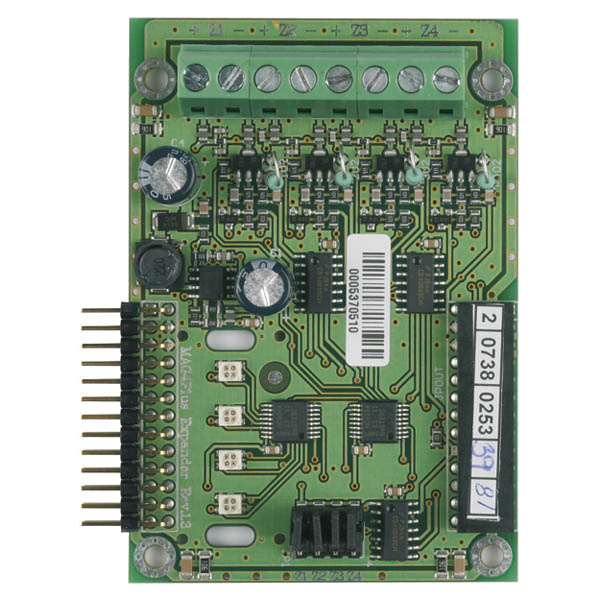

MAG MAGSC-816 4 Zone Sounder Expander Card for MAG816
£
29
85
(Incl. VAT)
3 Years Warranty
4 zone SOUNDER EXPANDER CARD for MAG816
About this product
About this product
The MAGFIRE MAGSC-816, from ESP's Fire Protection range, is a 4 zone sounder expander card for the MAG816. It expands sounder circuits by 4, takes up to 2 sounders per circuit and 8 sounders in all (MAGFire range), and has LED indication for its sounder circuits.
Key features
- For use with the MAG816
- Expands sounder circuits by 4: 4 zones (sounder circuits)
- Up to 2 sounders per circuit, 8 sounders in all (MAGFire range)
- LED indication for sounder circuits
- 4-wire conventional; cable 0.4 - 2.0 mm²
- 24 V DC operation, powered from the CIE (+24V); 150 mA in alarm mode
- PCB card, 57 x 81 mm
Frequently asked questions
What is it for?
The MAG816.
How many sounder circuits does it add?
It expands sounder circuits by 4.
How many sounders can it take?
Up to 2 per circuit and 8 in all (MAGFire range).
How is it powered?
From the CIE (+24V); it runs at 24 V DC.
What wiring does it use?
4-wire conventional, with 0.4 - 2.0 mm² cable.
-
Download
- MAGSC-816 Tech Sheet
£
29
85
Price
Technical Details
Specifications
Dimensions (mm)
57 x 81
Maximum Sounders Per Circuit
2 (MAGFire Range)
Maximum Number of Sounders
8 (MAGFire Range)
LED Indication for Sounder Circuits
Yes
Weight (Kg)
0.2
Warranty (Years)
3
Operating Voltage (V DC)
24
Consumption (Alarm Mode) (mA)
150
Current Consumption (A)
2
Power Supply from CIE (DC)
+24V
Operating Temperature (°C)
0 to +40
Relative Humidity Resistance (%)
93 (±3) (@40˚C)
Compatible Products
Compatible with MAG816
GTIN
5060224100912
Commodity Code
8531103000
Zones
4 (Sounder Circuits)
Materials
PCB
Maximum Cable Size (mm²)
0.4 - 2.0
Wiring Type
4-Wire Conventional
Features
Suitable for use with MAG816; Expands sounder circuits by 4
Dimensions
Dimensions (mm)
57 x 81
Specifications
| Dimensions (mm) | 57 x 81 |
|---|---|
| Maximum Sounders Per Circuit | 2 (MAGFire Range) |
| Maximum Number of Sounders | 8 (MAGFire Range) |
| LED Indication for Sounder Circuits | Yes |
| Weight (Kg) | 0.2 |
| Warranty (Years) | 3 |
| Operating Voltage (V DC) | 24 |
| Consumption (Alarm Mode) (mA) | 150 |
| Current Consumption (A) | 2 |
| Power Supply from CIE (DC) | +24V |
| Operating Temperature (°C) | 0 to +40 |
| Relative Humidity Resistance (%) | 93 (±3) (@40˚C) |
| Compatible Products | Compatible with MAG816 |
| GTIN | 5060224100912 |
| Commodity Code | 8531103000 |
| Zones | 4 (Sounder Circuits) |
| Materials | PCB |
| Maximum Cable Size (mm²) | 0.4 - 2.0 |
| Wiring Type | 4-Wire Conventional |
| Features | Suitable for use with MAG816; Expands sounder circuits by 4 |
Dimensions
| Dimensions (mm) | 57 x 81 |
|---|
